NEW QUESTION 1

You must use one logical uplink for Fibre Channel traffic and Ethernet traffic on a Cisco UCS system. Which type of port should you use to accomplish this task?

• A. FCoE storage
• B. server
• C. FCoE uplink
• D. uplink

Answer: C

Explanation:
Server and Uplink Ports on the Fabric Interconnect
Each fabric interconnect has a set of ports in a fixed port module that you can configure as either server ports or uplink Ethernet ports. These ports are not reserved. They cannot be used by a Cisco UCS instance until you configure them. You can add expansion modules to increase the number of uplink ports on the fabric interconnect or to add uplink Fibre Channel ports to the fabric interconnect.
You need to create LAN pin groups and SAN pin groups to pin traffic from servers to an uplink port. Each fabric interconnect can include the following types of ports:
Server Ports
Server ports handle data traffic between the fabric interconnect and the adapter cards on the servers.
You can only configure server ports on the fixed port module. Expansion modules do not include server ports.
Uplink Ethernet Ports
Uplink Ethernet ports handle Ethernet traffic between the fabric interconnect and the next layer of the network. All network-bound Ethernet traffic is pinned to one of these ports.
By default, Ethernet ports are unconfigured. However, you can configure them to function in the following ways:
Server
Uplink
FCoE
Appliance
You can configure uplink Ethernet ports on either the fixed module or an expansion module.
Uplink Fibre Channel Ports
Uplink Fibre Channel ports handle FCoE traffic between the fabric interconnect and the next layer of the network. All network-bound FCoE traffic is pinned to one of these ports.
By default, Fibre Channel ports are uplink. However, you can configure them to function as Fibre Channel storage ports. This is useful in cases where a Cisco UCS requires a connection to a Direct-Attached Storage (DAS) device.
You can only configure uplink Fibre Channel ports on an expansion module. The fixed module does not include uplink Fibre Channel ports.

NEW QUESTION 2

You deploy a new Cisco UCS system and use switching mode for storage communication. Which type of port should you configure as the interconnect to the SAN network?

• A. FCoE storage
• B. appliance
• C. server
• D. uplink
• E. FCoE uplink

Answer: E

NEW QUESTION 3

You plan to use vPC+ in a FabricPath topology. What are two characteristics of a vPC+ switch ID? (Choose two.)

• A. must he set to 255
• B. must be set manually
• C. can be reused in the FabricPath topology
• D. must be the same on each vPC+ peer
• E. must be different on each vPC+ peer

Answer: CD

NEW QUESTION 4

Which solution Enable you to scale up an IPS by load-balancing Traffic to servers or appliances

• A. Cisco ASA with FIRE POWER Services
• B. Cisco AMP
• C. PBR
• D. Cisco ITD

Answer: A

NEW QUESTION 5

Which two options are included in a dynamic vNIC connection policy? (Choose two.)

• A. network control policy
• B. chassis connectivity policy
• C. adapter policy
• D. LAN connectivity policy
• E. number of dynamic vNICs

Answer: CE

NEW QUESTION 6

Which statement accurately describes the allocation of IP pools for out-of-band management of a Cisco UCS Series environment*?

• A. The management IP addresses used to access CIMC on a server can be out-of-band addresses, through which traffic traverses the Fabric Interconnect via the management port
• B. The management IP addresses used to access CIMC on a server can be out-of-band addresses through which traffic traverses the Fabric Interconnect via the fabric uplink port
• C. A maximum of sixteen OOB IP addresses can be configured to access the CIMC on a server
• D. A maximum of eight OOB IP addresses can be configured to access the CIMC on a server

Answer: B

Explanation:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Admin-Ma

NEW QUESTION 7

You deploy new server infrastructure by using a Cisco UCS platform. Winch two design options can you use to increase the redundancy of the new compute solution' (Choose two.)

• A. a 10-Gb uplink port
• B. a pin vNic in the server profile to a specific Fabric Interconnect node that has failover disabled
• C. adding multiple ports to uplink port channels
• D. static pinning at the server ports
• E. more than one server port to connect the Cisco UCS B-Series blade IOM

Answer: BC

NEW QUESTION 8

Which statement accurately describes the configuration requirements for disjoint Layer 2 networks on Cisco UCS?

• A. The Cisco UCS fabric Interconnect must be in switch mode.
• B. The VLAN IDs must overlap in both Layer 2 domains.
• C. All of the uplinks most be in one port channel to keep all of the ports active.
• D. The Cisco UCS Fabric Interconnect must be in end-host motto.

Answer: D

NEW QUESTION 9

You are configuring a switch as a LISP xTR. You plan to use the LISP xTR when deploying redundant map servers. Which action do you take?

• A. Register the LISP xTR to the anycast IP address of the map resolver.
• B. Register the LISP xTR to the IP address of each map server
• C. Configure the map notify group command by using the anycast IP address of the map resolver
• D. Configure the map-notify group command by using the IP address of each map server

Answer: C

NEW QUESTION 10

You are designing a data center network using Cisco Nexus 7000 Series switches. Which feature should be configured to control the rate at which packets are allowed to reach the Supervisor?

• A. relaxed process startup
• B. port channel load balancing method
• C. embedded event manager
• D. data plane policing
• E. control plane policing

Answer: E

NEW QUESTION 11

Refer to exhibit.

What is the result of the configuration

• A. The interface is disable if aggressive UDLD is configure on neighbor interface
• B. UDLD attempt to reestablish the connection to the neighbor by sending packets every second for 8 seconds before disable
• C. The interface operates a point to multipoint interface
• D. UDLD attempt to reestablish the connection to the neighbor once before disabling the port

Answer: D

NEW QUESTION 12

What is used to insert services when using Layer 4 to Layer 7 service insertion in the Cisco ACI?

• A. device scripts
• B. tenant administrators
• C. policies
• D. function profiles

Answer: D

NEW QUESTION 13

You are designing a Cisco Fabric Interconnect. UCS Blade chassis, and stand-alone UCS server solution for a large public cloud provider The design includes these items
• one upstream Cisco Nexus 7000 Series switch that provides LAN and SAN connectivity
• ten Fabric Interconnect switches (five pairs in high availability)
• five fully equipped Cisco UCS Blade chassis per fabric interconnect switches pair
• fifty Cisco UCS stand-alone servers
Which two statements are true regarding the SAN connection from the fabric interconnect switches to the upstream Cisco Nexus 7000 Series switch? (Choose two.)

• A. The maximum number of domain IDs that can be addressed by the Fibre Channel protocol is 355
• B. Fabric interconnect switches must be designed in end host mode
• C. Fabric interconnect switches must be designed in switch mode
• D. Cisco UCS Blade servers and stand-alone servers must be connected to the SAN directly
• E. The Cisco Nexus 7000 Series switch must deploy NPIV

Answer: AE

NEW QUESTION 14

In a three-tier SAN topology, which network layer should you connect the SAN initiators to?

• A. storage edge
• B. core
• C. host edge
• D. distribution

Answer: C

NEW QUESTION 15

Which option must be enabled to allow line-rate forwarding on a Fibre Channel port?

• A. F port
• B. TEport
• C. dedicated mode
• D. shared mode
• E. E port

Answer: C

NEW QUESTION 16

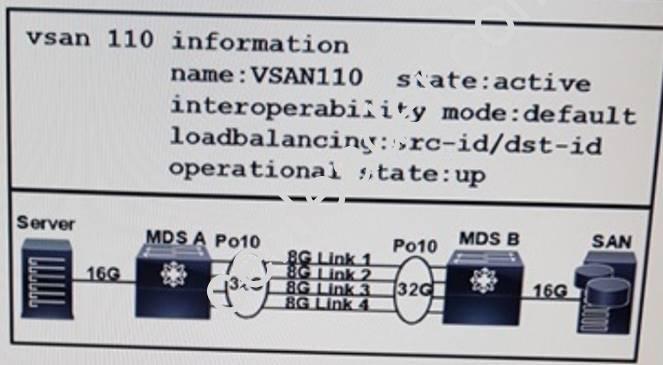

Refer to the Exhibit.

Link 1 handles most of the traffic. Which action do you take to load balance traffic evenly between the server and the SAN?

• A. Enable src-dst-ox0id load balancing on the MDS switches.
• B. Enable src-dst-id load balancing on the MDS switches.
• C. Change the MDS port changgel configuration to source dest port.
• D. Upgrade the bandwidth for the devices connected to the MDS.

Answer: A

NEW QUESTION 17

You have a Cisco Nexus 5500 Series switch. What is the default load-balancing hash mechanism for traffic on FCoE port channels?

• A. the source MAC address
• B. the source IP address and the destination IP address
• C. the source MAC address and the destination MAC address
• D. the source TCP or UDP port and the destination TCP or UDP port

Answer: B

Explanation:
On Nexus 5500 the default load balancing mechanism on the LACP port-channel for FCoE traffic is
"source-destination". In this default state, all the FCoE traffic takes the same link in the port-channel when the Nexus 5500 forwards frames over FCoE VE ports. In order to enable all links to be used in the port-channel
for FCoE traffic, enter the port-channel load-balance ethernet source-dest-port command to configure Nexus 5500 "port-channel load balancing" to "source-dest-port". With this configuration "source-destination-oxid" load balancing is used for FCoE traffic.

NEW QUESTION 18

Which two characteristics are associated with the access layer of a Data Center Unified Fabric network? (Choose two)

• A. voice, data, and wireless convergence
• B. no packet manipulation
• C. QoS—policing
• D. routing manipulation and filtering
• E. QoS - classification and queuing

Answer: AE

NEW QUESTION 19

You have a Cisco UCS B-Series chassis. To connect to a blade server by using a remote KVM console, you should connect to the IP address of which component?

• A. mgmt0
• B. CIMC
• C. IPMI
• D. CMP

Answer: B

NEW QUESTION 20

You plan to configure OTV multicast. What must you enable to use SSM?

• A. IGMFv3
• B. PIM-DM
• C. IGMPv2
• D. PIM-SM
• E. PIM Anycast-RP

Answer: D

NEW QUESTION 21

Which two FEX topologies trade deterministic bandwidth for server-link stability during FEX uplink failure? (Choose two.)

• A. port channel
• B. static pinning
• C. virtual port channel
• D. dynamic pinning
• E. Equal-Cost Multipath
• F. RPVST

Answer: AC

NEW QUESTION 22

Which statement accurately describes Ethernet switching mode on a Cisco UCS Fabric Interconnect?

• A. VTP is enabled on the Fabric Interconnect
• B. PVST+ runs on the Fabric Interconnect.
• C. The uplink ports are placed in a Rapid PVST+ edge trunk state
• D. The vNiCs can be configured for failover

Answer: B

NEW QUESTION 23

Which two statements accurately describe a Cisco UCS Fabric Interconnect cluster? (Choose two )

• A. Only the active Fabric Interconnect forwards data traffic
• B. The Fabric Interconnect cluster uses a Cisco UCS B-Senes Blade Server chassis to forward data when the L1-L2 links are down
• C. The Fabric Interconnect cluster uses a virtual IP address for management connections
• D. The Fabric Interconnect uses L1-L2 links to forward data when the primary Fabric Interconnect uplinks are down.
• E. primary Fabric Inter connect node conies up after a failure, the node compares the Cisco UCS systemdatabase version to Fabric Interconnect

Answer: CE

NEW QUESTION 24

Which two options can be performed only from the Admin VDCs on the Cisco Nexus 7000 Series platform? (Choose two)

• A. Create SPAN ports on other VDCs
• B. Create, modify, and delete VDCs
• C. Configure Cisco Fabric Path in other VDCs
• D. Access the CLI of other VDCs
• E. Process-data plane traffic

Answer: BD
