Renovate 300-625 Brain Dumps For Implementing Cisco Storage Area Networking (DCSAN) Certification

NEW QUESTION 1
A storage engineer is troubleshooting a Cisco MDS switch upgrade issue. What prevents the completion of a non- disruptive upgrade?

• A. The Fibre Channel host initiator is connected.
• B. The Fibre Channel storage target is connected.
• C. The Cisco Fabric Services operation in progress.
• D. The Fibre Channel and FCoE storage targets are connected.

Answer: B

NEW QUESTION 2
Refer to the exhibit.

What is the result of merging the fabric?

• A. The merged fabric IVR VSAN topology is set to activate.
• B. The merged fabric has NAT enabled.
• C. The merge is invalid.
• D. The merged fabric contains only service group Group1.

Answer: D

NEW QUESTION 3
Which EtherType is used by the FCoE Initialization Protocol?

• A. 0×8913
• B. 0×8914
• C. 0×xfc0e
• D. 0×8906

Answer: B

NEW QUESTION 4
After a subordinate switch requests a domain ID form a principal switch, the requested domain ID becomes the runtime domain ID, and all interfaces on the affected VSAN are isolated. What is a solution to the issue?

• A. Add the received ID to the allowed list.
• B. Configure a static domain on the subordinate switch and reboot the switch.
• C. Enable the FICON feature on the affected VSAN.
• D. Configure IVR NAT on the affected VSAN.

Answer: A

NEW QUESTION 5
Which command identifies the application and the user that have a Cisco Fabric Services session open?

• A. show cfs application
• B. show zoneset active
• C. show cfs lock
• D. show device-alias database

Answer: A

NEW QUESTION 6
What is the effect of a non-graceful virtual machine shutdown on a virtualized server that is connected to a SAN with Fibre Channel interfaces?

• A. NP Port reload connected to the upstream SAN switch
• B. out-of-service Fibre Channel interfaces on the SAN switch
• C. frames stuck in the storage system
• D. frames stuck in the HBA buffer of the server

Answer: B

NEW QUESTION 7
The principal switch on a Fibre Channel network fails to assign requested domain to a subordinate switch. What are two reasons? (Choose two.)

• A. Cisco Fabric Services distribution is not enabled on the switch.
• B. The fabric is locked.
• C. The requested domain is outside the allowed list.
• D. The persistent FC ID feature is not enabled.
• E. An existing switch already has the requested domain assigned.

Answer: CE

NEW QUESTION 8
Which configuration is available only in Cisco DCNM-SAN Advanced mode?

• A. IVR
• B. VMpath configuration
• C. zoning
• D. template-based provisioning

Answer: A

NEW QUESTION 9

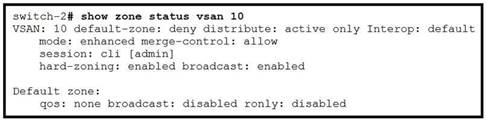

Refer to the exhibit.

A user who is logged in as an operator cannot update the zoneset. What is the cause of this issue?

• A. The fabric is locked by admin on switch-2.
• B. Hard zoning is enabled.
• C. Merge control is disabled.
• D. The switch has a conflicting domain ID.
• E. The fabric is locked by admin on another switch.

Answer: A

NEW QUESTION 10
DRAG DROP
Drag and drop the FLOGI parameters from the left onto the descriptions from which they were-derived on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 11
Which result occurs if a device alias is renamed and then the original device alias name is used in an add command in the same session?

• A. Both commands execute successfully.
• B. The device alias is renamed and the add command is moved to the rejected list.
• C. Both commands are moved to the rejected list.
• D. The rename command is moved to the rejected list and the add command executes successfully.

Answer: A

NEW QUESTION 12
A storage administrator is enabling DH-CHAP for the first time on a Fibre Channel fabric. Which condition must the administrator consider while configuring this feature?

• A. NTP must be configured on all devices or the configuration fails.
• B. The MD5 hash must be used if TACACS+ or RADIUS authentication for FCSP is enabled.
• C. All switches on the fabric must be configured for the same password.
• D. Enabling DH-CHAP protocol feature is unsupported on FCIP interfaces.

Answer: B

NEW QUESTION 13

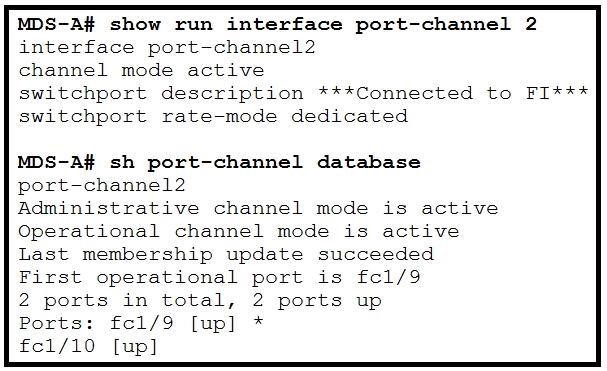

Refer to the exhibit.

A port channel has been configured between a Cisco MDS and a Cisco Fabric Interconnect switch. Which interface(s) in the port channel carry the control plane traffic?

• A. per packet, balanced between interfaces fc1/9 and fc1/10
• B. from interface fc1/9
• C. from interface fc1/10
• D. per flow, balanced between interfaces fc1/9 and fc1/10

Answer: D

NEW QUESTION 14
Refer to the exhibit.

What is the result of the configuration?

• A. No-drop CoS values are advertised by the DCBX.
• B. LFC is prioritized over PFC on Ethernet 1/10.
• C. PFC operates on Ethernet 1/10 regardless of the capability of the peer.
• D. PFC fails to operate properly unless LFC is disabled on Ethernet 1/10.

Answer: A

NEW QUESTION 15
Which port mode is used on an NPV device to connect to an NPIV core switch?

• A. E
• B. F
• C. N
• D. NP

Answer: D

NEW QUESTION 16
Which result occurs when a VSAN is deleted that contains non-trunking ports?

• A. The ports are moved to VSAN 4094.
• B. The ports are moved to VSAN 1.
• C. The ports are removed from the configuration.
• D. The port configurations are cleared.

Answer: A

NEW QUESTION 17
Which two steps are mutual between Cisco secure boot and UEFI secure boot? (Choose two.)

• A. bootloader
• B. operating system
• C. microloader
• D. kemel
• E. hardware anchor

Answer: AB

NEW QUESTION 18
A Cisco MDS Series Switch with the POAP feature boots and does not find the startup configuration. Which location is checked first when the switch enters POAP mode?

• A. USB device that contains the software image files and the switch configuration file
• B. DHCP server to bootstrap the interface IP address, gateway, DNS server, and TFTP IP addresses
• C. TFTP server where the necessary configuration files are downloaded
• D. HTTP server where the URL is used to download the software image

Answer: A

NEW QUESTION 19
A storage administrator is connecting two previously configured switches to make a single fabric. When the E Ports are connected, the administrator sees a ZONE MERGE FAILURE message referring to the zoneset for VSAN 10 on each switch. Which command should the administrator use to allow these switches to work together?

• A. zoneset import interface fc1/1 vsan 10
• B. zoneset distribute full vsan 10
• C. zoneset overwrite-control vsan 10
• D. zoneset copy active-zoneset full-zoneset

Answer: A

NEW QUESTION 20
A storage administrator is upgrading Cisco NX-OS on a Cisco MDS switch. The administrator performs an ISSU upgrade following the configuration guide. While the install is proceeding, the administrator connects a new server to the switch, which cannot access storage. The existing servers continue to operate properly through the switch. Why is the new server failing to connect?

• A. The fabric data plane resets as part of the upgrade process.
• B. The new server is unable to log in to the fabric to receive an FC-ID.
• C. The upgrade process disables any currently unused ports.
• D. The zoning database is locked during the upgrade process.

Answer: D

NEW QUESTION 21
What is the function of the 0xFFFFFC address in a Fibre Channel fabric?

• A. management server
• B. fabric controller
• C. name server
• D. time server

Answer: C

NEW QUESTION 22
A storage network engineer must configure a 48-port Cisco MDS switch to reject any login requests to VSAN 10 from unauthorized Fibre Channel devices and switches. All the devices that were already logged in to the switch from this VSAN must be allowed without any manual configuration. Which configuration must be applied?

• A. switch(config)# feature port-security switch(config)# port- security activate vsan 10
• B. switch(config)# feature port- security switch(config)# port-security activate vsan 10 no auto- learn
• C. switch(config)# feature port-security switch(config)# port-security database vsan 10 switch(config-port-security)# any-wwn interface fc1/1 – fc1/48
• D. switch(config)# port-security activate vsan 10

Answer: D

NEW QUESTION 23
Refer to the exhibit.

Which configuration change improves the ability of the link to recover from frame loss?

• A. Increase the reset timeout.
• B. Enable selective acknowledgment.
• C. Increase the send buffer size to 15000 KB.
• D. Disable PMTU discovery.

Answer: B
