Updated 400-007 Actual Test For Cisco Certified Design Expert (CCDE V3.0) Written Exam Certification

NEW QUESTION 1
How many fully established neighbour relationships exist on an Ethernet with five routers running OSPF as network
type broadcast?

• A. 5
• B. 6
• C. 7
• D. 10
• E. 20

Answer: C

NEW QUESTION 2
A Tier-3 Service Provider is evolving into a Tier-2 Service Provider due to the amount of Enterprise business it is receiving.
The network engineers are re-evaluating their IP/MPLS design considerations in order to support duplicate/overlapping IP addressing from their Enterprise customers within each Layer3 VPN.
Which concept would need to be reviewed to ensure stability in their network?

• A. Assigning unique Route Distinguishers
• B. Assigning unique Route Target ID'S
• C. Assigning unique IP address space for the Enterprise NAT/Firewalls
• D. Assigning unique VRF ID's to each L3VPN

Answer: A

NEW QUESTION 3
SD-WAN can be used to provide secure connectivity to remote offices, branch offices, campus networks, data centers, and the cloud over any type of IP-based underlay transport network. Which two statements describe SD WAN solutions? (Choose two.)

• A. SD-WAN networks are inherently protected against slow performance.
• B. Control and data forwarding planes are kept separate.
• C. Improved operational efficiencies result In cost savings.
• D. Solutions include centralized orchestration, control, and zero-touch provisioning.
• E. Solutions allow for variations of commodity and specialized switching hardware.

Answer: BD

NEW QUESTION 4
Company ABC wants to minimize the risk of users plugging unauthorized switches and hubs into the network.
Which two features can be used on the LAN access ports to support this design requirement? (Choose two.)

• A. Loop Guard
• B. PortFast
• C. DTF
• D. Root Guard
• E. BPDU Guard

Answer: BE

NEW QUESTION 5
Which two advantages of using DWDM over traditional optical networks are true? (Choose two.)

• A. inherent topology flexibility and service protection provided without penalty through intelligent oversubscription of bandwidth reservation
• B. ability to expand bandwidth over existing optical Infrastructure
• C. inherent topology flexibility with built-in service protection
• D. inherent topology flexibility with intelligent chromatic dispersion
• E. inherent topology flexibility with a service protection provided through a direct integration with an upper layer protocol

Answer: BC

NEW QUESTION 6
Which two aspects are considered when designing a dual hub dual DMVPN cloud topology? (Choose two )

• A. will only work with single-tier headend architecture
• B. hub sites must connect to both DMVPN clouds
• C. recommended for high availability
• D. spoke-to-spoke traffic will transit the hub unless spokes exchange dynamic routing directly
• E. requires all sites to have dual Internet connections

Answer: AC

NEW QUESTION 7
In an OSPF network with routers connected together with Ethernet cabling, which topology
typically takes the longest to converge?

• A. partial mesh
• B. full mesh
• C. ring
• D. squared
• E. triangulated

Answer: B

NEW QUESTION 8

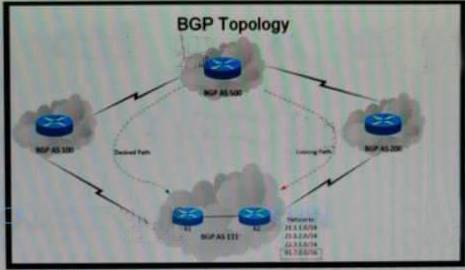

Refer to the exhibit. An engineer has been asked to redesign the traffic flow toward AS 111 coming from AS 500. Traffic destined to AS 111 network 91.7.0.0/16 should come in via AS 100. while traffic destined to all other networks in AS 111 should continue to use the existing path. Which BGP attributes are best suited to control this inbound traffic coming from BGP AS 500 Into the 91.7.0.0/16 network?

• A. Prepend AS path for the 91.7.0.0/16 network and set it for neighbor in AS 200.
• B. Use extended community for the 91.7.0.0/16 network, not advertising it to the bi-lateral peer.
• C. Use local preference on R1 for the networks that AS 500 advertises to AS 111.
• D. Set higher MED for neighbor in AS 100 to influence incoming traffic for the 91. 7.0.0/16 network.

Answer: A

NEW QUESTION 9
Refer to the exhibit. OSPF is running as the IGP to provide reachability to all AS100 networks. R3 and R4 are the current ABRs at the boundary of OSPF Area0 and Areal. Now BGP must be deployed within AS 100 because it will be receiving. Internet routes from its eBGP peers (the service provider) connected to R1 and R2.
What is an optimal solution for this deployment to configure BGP relationships and redistribute BGP learned routes into OSPF?

• A. R5 should be configured as a route reflector for R1, R2, R3 and R4. BGP routes must beredistributed at R1 and R2 into OSPF.
• B. Configuration should be set up with R1 and R2, and R3 in one sub AS, with and R4 in another,and redistribution at R1 and R2.
• C. A full mesh should be deployed between all the routers with mutual redistribution to take place atR1 and R2.
• D. R1, R2, R3 and R4 must be set up with a neighbor relationship with R5 only must not be a routereflector.

Answer: C

NEW QUESTION 10
An enterprise network has two core routers that connect to 200 distribution routers and uses fullmesh
IBGP peering between these routers as its routing method. The distribution routers are experiencing high CPU utilization due to the BGP process. Which design solution is the most cost effective?

• A. Implement route reflectors on the two core routers
• B. Increase the memory on the core routers
• C. Implement e BGP between the core and distribution routers
• D. Increase the memory on the distribution routers
• E. Increase bandwidth between the core routers

Answer: A

NEW QUESTION 11

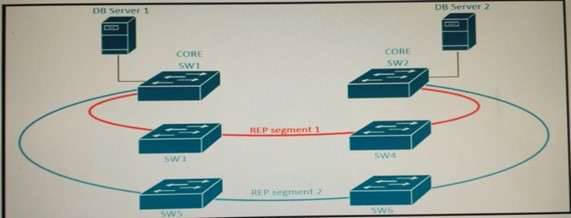

Refer to the exhibit. A new high availability DB sever cluster is installed in the network.

These two servers require high bandwidth and low latency Layer 2 connectivity for database replication.
Which solution supports these requirements?

• A. Add two new links between SW1 and SW2 configured as LACP trunk with STP
• B. Add secondary links to REP segments 1 and 2
• C. Add two new links between SW1 and SW2 configured as REP segment 3
• D. Add two new links between SW1 and SW2 configured as REP segments 1 and 2 respectively

Answer: C

NEW QUESTION 12
Two enterprise networks must be connected together. Both networks are using the same private IP addresses.
The client requests from both sides should be translated using hide NAT (dynamic NAT) with the overload feature to save IF addresses from the NAT pools.
Which design addresses this requirement using only one Cisco I OS NAT router for both directions?

• A. This is not possible, because two Cisco IOS NAT routers are required to do dynamic NAT, withoverload in both directions.
• B. The ip nat inside and ip nat outside commands must be configured at the interfaces with theoverload option in both directions.
• C. The overload feature is the default and does not have to be configured.
• D. Two different NAT pools must be used for the ip nat inside source and the ip nat outside sourcecommands for the overload feature in both directions.
• E. The Nat Virtual interface must be used to achieve this requirement.

Answer: D

NEW QUESTION 13
Which network management framework can be used to develop a network architecture that contains business requirements analysis, gap analysis, and network diagrams as artifacts to be used for design and implementation later?

• A. TOG
• B. ITIL
• C. FCAPS
• D. Cobit

Answer: C

NEW QUESTION 14
Which MPLS TE design consideration is true?

• A. MPLS TE replaces LDP and the dependency of the IGP to identify the best path.
• B. MPLS TE provides link and node protection
• C. MPLS TE optimizes the routing of IP traffic, given the constraints imposed by backbone capacityand application requirements.
• D. MPLS TE requires Layer 3 VPN full-mesh topology deployment

Answer: C

NEW QUESTION 15
Company XYZ has 30 sites running a legacy private WAN architecture that connects to the Internet via multiple highspeed connections.
The company is now redesigning their network and must comply with these design requirements:
- Use a private WAN strategy that allows the sites to connect to each other directly and caters for future expansion.
- Use the Internet as the underlay for the private WAN. Securely transfer the corporate data over the private WAN.
Which two technologies should be Incorporated into the design of this network? (Choose two.)

• A. S-VTI
• B. IPsec
• C. DMVPN
• D. GET VPN
• E. PPTP

Answer: BC
