Up To Date NSE7_EFW-6.2 Samples 2021

NEW QUESTION 1

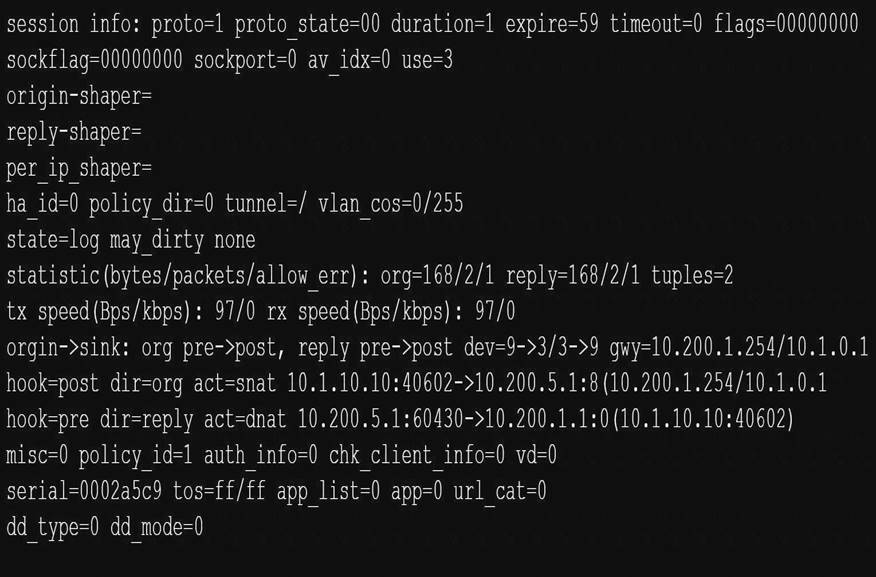

View the exhibit, which contains a session entry, and then answer the question below.

Which statement is correct regarding this session?

• A. It is an ICMP session from 10.1.10.10 to 10.200.1.1.
• B. It isan ICMP session from 10.1.10.10 to 10.200.5.1.
• C. It is a TCP session in ESTABLISHED state from 10.1.10.10 to 10.200.5.1.
• D. It is a TCP session in CLOSE_WAIT state from 10.1.10.10 to 10.200.1.1.

Answer: A

NEW QUESTION 2
An administrator has configured the following CLI script on FortiManager, which failed to apply any changes to the managed device afterbeing executed.

Why didn’t the script make any changes to the managed device?

• A. Commands that start with the # sign are not executed.
• B. CLI scripts will add objects only if they are referenced by policies.
• C. Incomplete commands are ignored in CLI scripts.
• D. Static routes can only be added using TCL scripts.

Answer: A

Explanation:
https://help.fortinet.com/fmgr/50hlp/56/5-6-2/FortiManager_Admin_Guide/1000_Device%20Manager/2400_Sc
A sequence of FortiGate CLI commands, as you would type them at the command line.A comment line starts with the number sign (#). A comment line will not be executed.

NEW QUESTION 3

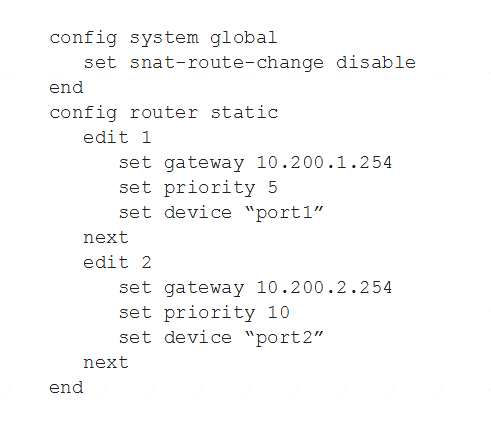

View the following FortiGate configuration.

All traffic to the Internet currently egresses from port1. The exhibit shows partial session information for Internet traffic from a user on the internal network:

If the priority on route ID 1 were changed from 5 to20, what would happen to traffic matching that user’s session?

• A. The session would remain in the session table, and its traffic would still egress from port1.
• B. The session would remain in the session table, but its traffic would now egress fromboth port1 and port2.
• C. The session would remain in the session table, and its traffic would start to egress from port2.
• D. The session would be deleted, so the client would need to start a new session.

Answer: A

Explanation:
http://kb.fortinet.com/kb/documentLink.do?externalID=FD40943

NEW QUESTION 4
Examine the output of the ‘get router info ospf neighbor’ command shown in the exhibit; then answer the question below.

Whichstatements are true regarding the output in the exhibit? (Choose two.)

• A. The interface ToRemote is OSPF network type point-to-point.
• B. The OSPF router with the ID 0.0.0.2 is the designated router for the ToRemote network.
• C. The local FortiGate is the backup designated router for the wan1 network.
• D. The OSPF routers with the IDs 0.0.0.69 and 0.0.0.117 are both designated routers for the wan1 network.

Answer: AC

Explanation:
https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/13685-13.html

NEW QUESTION 5
An administrator has configured a dial-up IPsec VPN with one phase 2, extended authentication (XAuth) and IKE mode configuration. The administrator has also enabled the IKE real time debug:
diagnose debug application ike-1 diagnose debug enable
In which order is each step and phase displayed in the debug output each time a new dial-up user is connecting to the VPN?

• A. Phase1; IKE mode configuration; XAuth; phase 2.
• B. Phase1; XAuth; IKE mode configuration; phase2.
• C. Phase1; XAuth; phase 2; IKE mode configuration.
• D. Phase1; IKE mode configuration; phase 2; XAuth.

Answer: B

Explanation:
https://help.fortinet.com/fos50hlp/54/Content/FortiOS/fortigate-ipsecvpn-54/IPsec_VPN_Concepts/IKE_Packet

NEW QUESTION 6

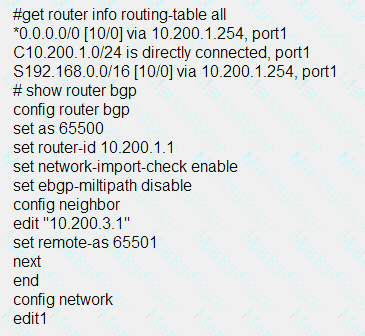

Examine the following routing table and BGP configuration; then answer the question below.

TheBGP connection is up, but the local peer is NOT advertising the prefix 192.168.1.0/24. Which configuration change will make the local peer advertise this prefix?

• A. Enable the redistribution of connected routers into BGP.
• B. Enable the redistribution of static routers into BGP.
• C. Disable the setting network-import-check.
• D. Enable the setting ebgp-multipath.

Answer: C

NEW QUESTION 7

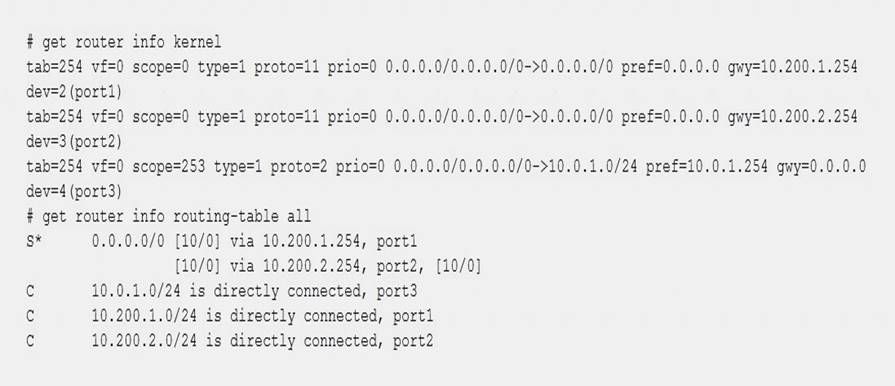

View these partial outputs from two routing debug commands:

Which outbound interface will FortiGate use to route web traffic from internal users to the Internet?

• A. Both port1 and port2
• B. port3
• C. port1
• D. port2

Answer: A

NEW QUESTION 8

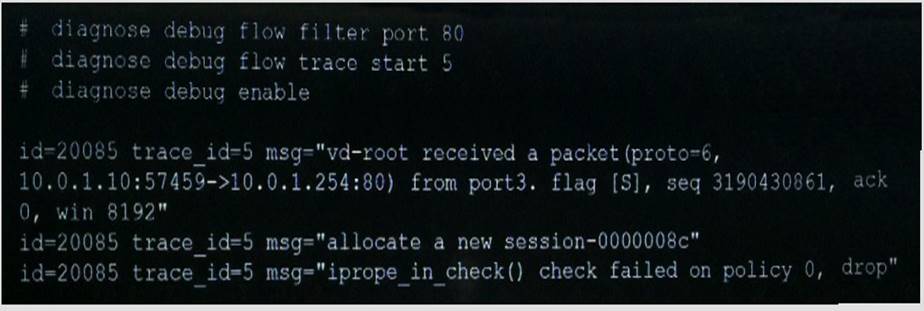

An administrator cannot connect to the GIU of a FortiGate unit with the IP address 10.0.1.254. The administrator runs the debug flow while attempting the connection using HTTP. The output of thedebug flow is shown in the exhibit:

Based on the error displayed by the debug flow, which are valid reasons for this problem? (Choose two.)

• A. HTTP administrative access is disabled in the FortiGate interface with the IP address 10.0.1.254.
• B. Redirection of HTTP to HTTPS administrative access is disabled.
• C. HTTP administrative access is configured with a port number different than 80.
• D. The packet is denied because of reverse path forwarding check.

Answer: AC

NEW QUESTION 9

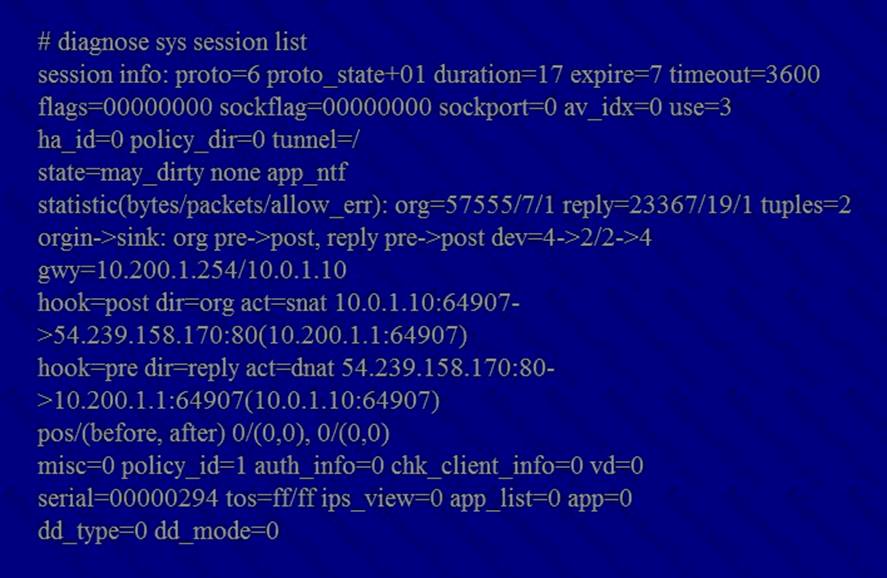

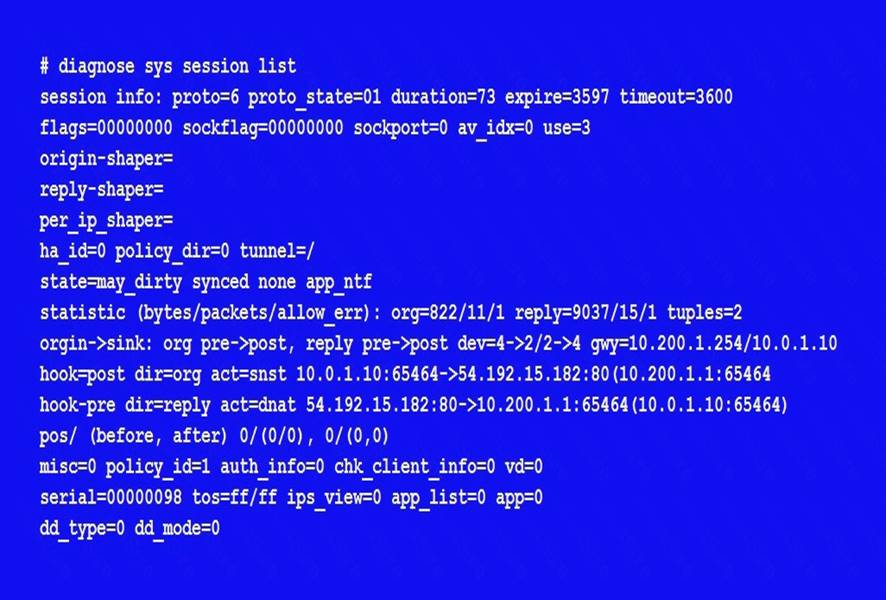

View the exhibit, which contains the output of diagnose syssession list, and then answer the question below.

If the HA ID for the primary unit is zero (0), which statement is correct regarding the output?

• A. This session is for HA heartbeat traffic.
• B. This session is synced with the slave unit.
• C. Theinspection of this session has been offloaded to the slave unit.
• D. This session cannot be synced with the slave unit.

Answer: B

NEW QUESTION 10
When does a RADIUS server send an Access-Challenge packet?

• A. The server does not have the usercredentials yet.
• B. The server requires more information from the user, such as the token code for two-factor authentication.
• C. The user credentials are wrong.
• D. The user account is not found in the server.

Answer: B

NEW QUESTION 11
Which of the following conditions must be met for a static route to be active in therouting table? (Choose three.)

• A. The next-hop IP address is up.
• B. There is no other route, to the same destination, with a higher distance.
• C. The link health monitor (if configured) is up.
• D. The next-hop IP address belongs to one of the outgoing interface subnets.
• E. The outgoing interface is up.

Answer: CDE

Explanation:
A configured static route only goes to routing table from routing database when all the following are met :
The outgoing interface is up
There is no other matching route with a lowerdistance
The link health monitor (if configured) is successful
The next-hop IP address belongs to one of the outgoing interface subnets

NEW QUESTION 12

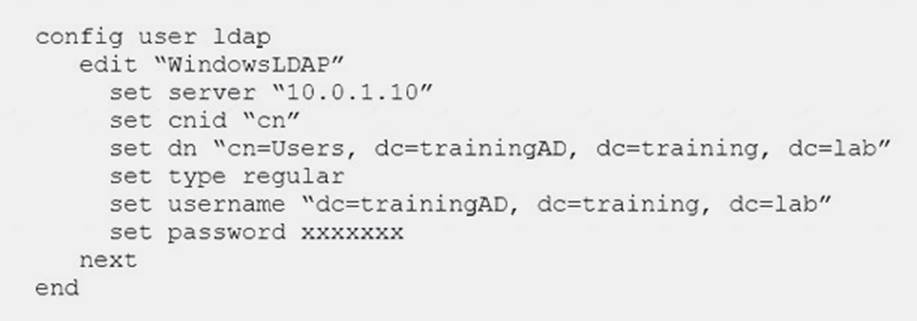

A FortiGate device has thefollowing LDAP configuration:

The administrator executed the ‘dsquery’ command in the Windows LDAp server 10.0.1.10, and got the following output:
>dsquery user –samid administrator
“CN=Administrator, CN=Users, DC=trainingAD, DC=training,DC=lab” Based on the output, what FortiGate LDAP setting is configured incorrectly?

• A. cnid.
• B. username.
• C. password.
• D. dn.

Answer: B

Explanation:
https://kb.fortinet.com/kb/viewContent.do?externalId=FD37516

NEW QUESTION 13
Which configuration can be used to reduce the number of BGP sessions in an IBGP network?

• A. Neighbor range
• B. Route reflector
• C. Next-hop-self
• D. Neighbor group

Answer: B

Explanation:
Route reflectors help to reduce the number of IBGP sessions inside an AS. A route reflector forwards the routers learned from one peer to the other peers. If you configure route reflectors, you dont’ need to create a full mesh IBGP network. All clients in a cluster only talck to route reflector to get sync routing updates. Route reflectors pass the routing updates to other route reflectors and border routers within the AS.

NEW QUESTION 14
In which two states is a given session categorized as ephemeral? (Choose two.)

• A. A TCP session waiting to complete the three-way handshake.
• B. A TCP session waiting for FIN ACK.
• C. A UDP session with packets sent and received.
• D. A UDP session with only one packet received.

Answer: AD

NEW QUESTION 15

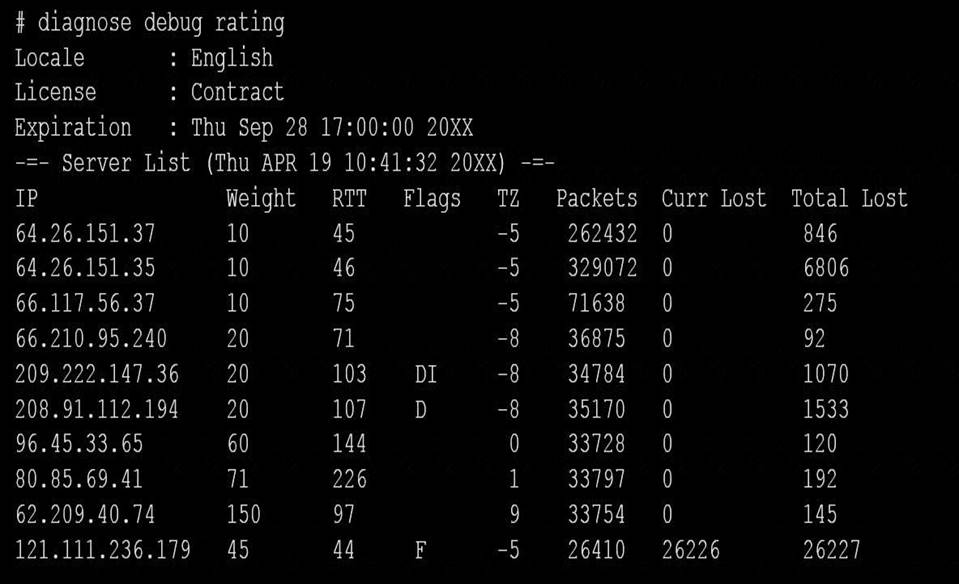

View the exhibit, which contains the output of a diagnose command, and the answer the question below.

Which statements are true regarding the Weight value?

• A. Its initial value is calculated based on theround trip delay (RTT).
• B. Its initial value is statically set to 10.
• C. Its value is incremented with each packet lost.
• D. It determines which FortiGuard server is used for license validation.

Answer: C

NEW QUESTION 16
View the global IPSconfiguration, and then answer the question below.

Which of the following statements is true regarding this configuration?

• A. IPS will scan every byte in every session.
• B. FortiGate will spawn IPS engine instances based on the system load.
• C. New packets will be passed through without inspection if the IPS socket buffer runs out of memory.
• D. IPS will use the faster matching algorithm which is only available for units with more than 4 GB memory.

Answer: A

NEW QUESTION 17

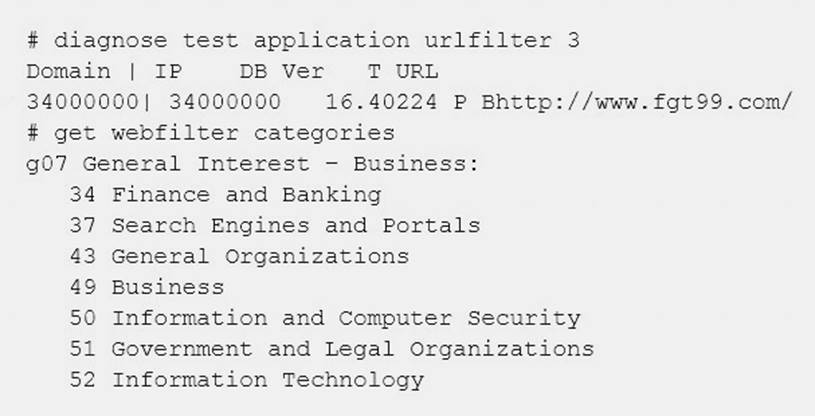

Examine the partial output from two web filter debug commands; then answer the question below:

Based on the above outputs, which is the FortiGuard web filter category for the web site www.fgt99.com?

• A. Finance and banking
• B. General organization.
• C. Business.
• D. Information technology.

Answer: C

NEW QUESTION 18
An administrator wants to capture ESP trafficbetween two FortiGates using the built-in sniffer. If the administrator knows that there is no NAT device located between both FortiGates, what command should the administrator execute?

• A. diagnose sniffer packet any ‘udp port 500’
• B. diagnose sniffer packet any ‘udp port 4500’
• C. diagnose sniffer packet any ‘esp’
• D. diagnose sniffer packet any ‘udp port 500 or udp port 4500’

Answer: C

NEW QUESTION 19

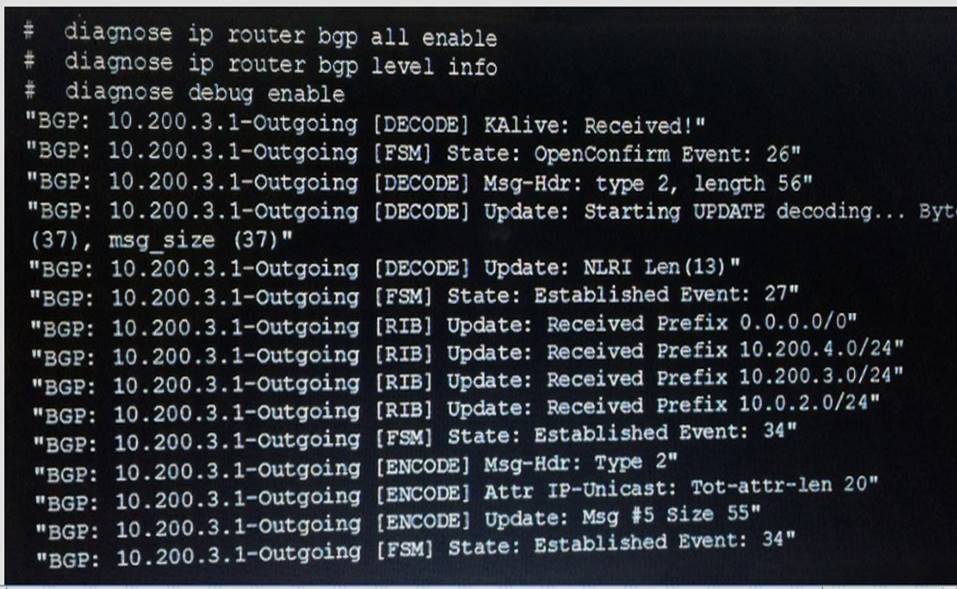

Examine the output fromthe BGP real time debug shown in the exhibit, then the answer the question below:

Which statements are true regarding the output in the exhibit? (Choose two.)

• A. BGP peers have successfully interchangedOpenandKeepalivemessages.
• B. Local BGP peer received a prefix for a default route.
• C. The state of the remote BGP peer isOpenConfirm.
• D. The state of the remote BGP peer will go toConnectafter it confirms the received prefixes.

Answer: AB

NEW QUESTION 20
What is the purpose of an internal segmentation firewall (ISFW)?

• A. It inspects incoming traffic to protect services in the corporate DMZ.
• B. It is the first line of defense at the network perimeter.
• C. It splits the network into multiple security segments to minimize the impact of breaches.
• D. It is an all-in-one security appliance that is placed at remotesites to extend the enterprise network.

Answer: C

Explanation:
ISFW splits your network into multiple security segments. They serve as a breach containers from attacks that come from inside.

NEW QUESTION 21

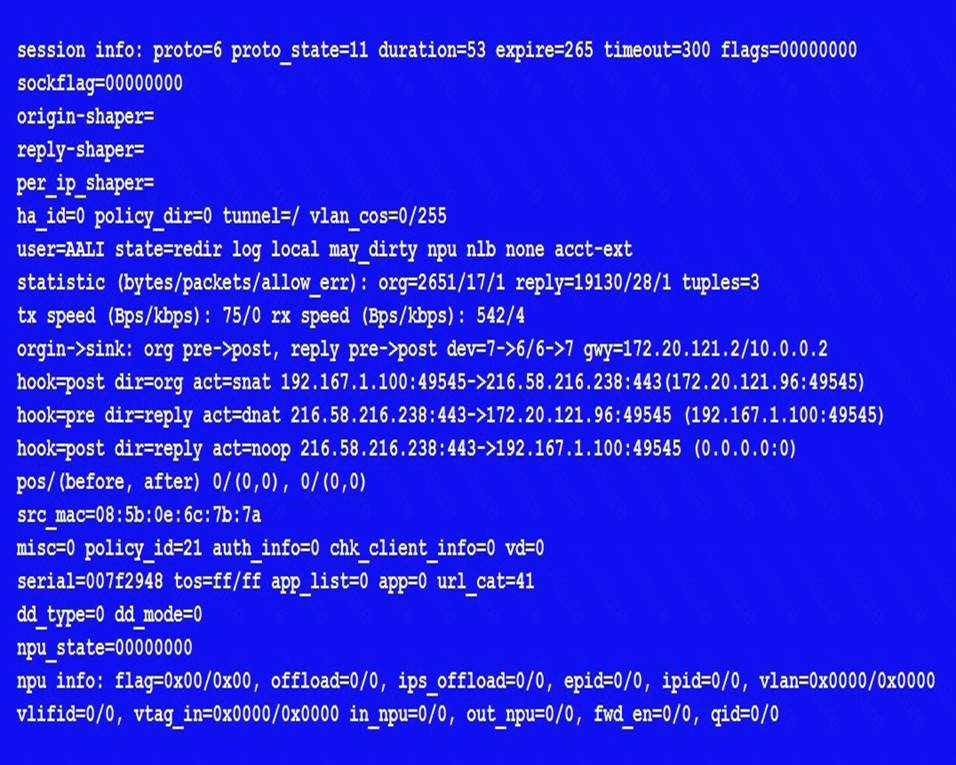

View the exhibit, which contains an entry in the session table, and then answer the question below.

Which one of the following statements istrue regarding FortiGate’s inspection of this session?

• A. FortiGate applied proxy-based inspection.
• B. FortiGate forwarded this session without any inspection.
• C. FortiGate applied flow-based inspection.
• D. FortiGate applied explicitproxy-based inspection.

Answer: A

Explanation:
https://kb.fortinet.com/kb/viewContent.do?externalId=FD30042

NEW QUESTION 22
View the exhibit, which contains the partial output of a diagnose command, and then answer thequestion below.

Based on the output, which of the following statements is correct?

• A. Anti-reply is enabled.
• B. DPD is disabled.
• C. Quick mode selectors are disabled.
• D. Remote gateway IP is 10.200.5.1.

Answer: A

NEW QUESTION 23
Which of the following statements are true regarding the SIP session helper and the SIP application layer gateway (ALG)? (Choose three.)

• A. SIP session helper runs in the kernel; SIP ALG runs as a user space process.
• B. SIP ALG supports SIP HA failover; SIP helper does not.
• C. SIP ALG supports SIP over IPv6; SIP helperdoes not.
• D. SIP ALG can create expected sessions for media traffic; SIP helper does not.
• E. SIP helper supports SIP over TCP and UDP; SIP ALG supports only SIP over UDP.

Answer: BCD
