Abreast Of The Times NSE7_LED-7.0 Training Tools For Fortinet NSE 7 - LAN Edge 7.0 Certification

NEW QUESTION 1
Which CLI command should an administrator use to view the certificate verification process in real time?

• A. diagnose debug application foauthd -1
• B. diagnose debug application radiusd -1
• C. diagnose debug application authd -1
• D. diagnose debug application fnbamd -1

Answer: A

Explanation:
According to the FortiOS CLI Reference Guide, “The diagnose debug application foauthd command enables debugging of certificate verification process in real time.” Therefore, option A is true because it describes the CLI command that an administrator should use to view the certificate verification process in real time. Option B is false because diagnose debug application radiusd -1 enables debugging of RADIUS authentication process, not certificate verification process. Option C is false because diagnose debug application authd -1 enables debugging of authentication daemon process, not certificate verification process. Option D is false because diagnose debug application fnbamd -1 enables debugging of FSSO daemon process, not certificate verification process.

NEW QUESTION 2
Where can FortiGate learn the FortiManager IP address or FQDN for zero-touch provisioning'?

• A. From an LDAP server using a simple bind operation
• B. From a TFTP server
• C. From a DHCP server using options 240 and 241
• D. From a DNS server using A or AAAA records

Answer: D

Explanation:
According to the FortiGate Administration Guide, “FortiGate can learn the FortiManager IP address or FQDN for zero-touch provisioning from a DNS server using A or AAAA records. The DNS server must be configured to resolve the hostname fortimanager.fortinet.com to the IP address or FQDN of the FortiManager device.” Therefore, option D is true because it describes the method for FortiGate to learn the FortiManager IP address or FQDN for zero-touch provisioning. Option A is false because LDAP is not used for zero-touch provisioning. Option B is false because TFTP is not used for zero-touch provisioning. Option C is false because DHCP options 240 and 241 are not used for zero-touch provisioning.

NEW QUESTION 3
A wireless network in a school provides guest access using a captive portal to allow unregistered users to self-register and access the network The administrator is requested to update the existing configuration to provide captive portal authentication through a secure connection (HTTPS)
Which two changes must the administrator make to enforce HTTPS authentication"? (Choose two >

• A. Create a new SSID with the HTTPS captive portal URL
• B. Enable HTTP redirect in the user authentication settings
• C. Disable HTTP administrative access on the guest SSID to enforce HTTPS connection
• D. Update the captive portal URL to use HTTPS on FortiGate and FortiAuthenticator

Answer: BD

Explanation:
According to the FortiGate Administration Guide, “To enable HTTPS authentication, you must enable HTTP redirect in the user authentication settings. This redirects HTTP requests to HTTPS. You must also update the captive portal URL to use HTTPS on both FortiGate and FortiAuthenticator.” Therefore, options B and D are true because they describe the changes that the administrator must make to enforce HTTPS authentication for the captive portal. Option A is false because creating a new SSID with the HTTPS captive portal URL is not required, as the existing SSID can be updated with the new URL. Option C is false because disabling HTTP
administrative access on the guest SSID will not enforce HTTPS connection, but rather block HTTP connection.

NEW QUESTION 4
Refer to the exhibit

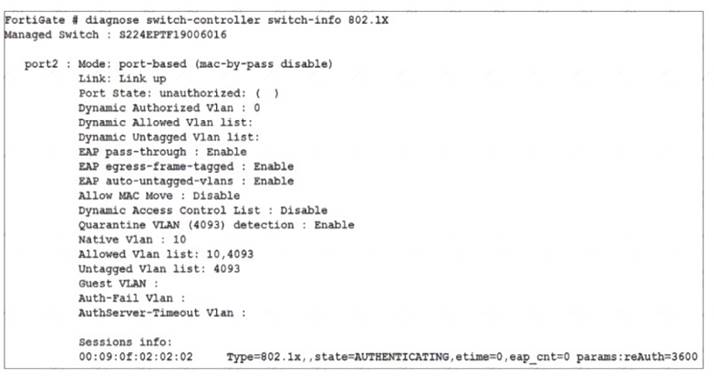

A device connected to port2 on FortiSwitch cannot access the network The port is assigned a security policy to enforce 802 1X authentication While troubleshooting the issue, the administrator obtains the debug output shown in the exhibit
Which two scenarios are likely to cause this issue? (Choose two.)

• A. The device is not configured for 802 IX authentication.
• B. The device has been quarantined for 3600 seconds.
• C. The device has been assigned the guest VLAN
• D. The device does not support 802 1X authentication

Answer: AD

Explanation:
According to the exhibit, the debug output shows that the device connected to port2 on FortiSwitch is sending an EAPOL-Start message, which is the first step of the 802.1X authentication process. However, the output also shows that the device is not sending any EAP-Response messages, which are required to complete the authentication process. Therefore, option A is true because the device is not configured for 802.1X authentication, which means that it does not have the correct credentials or settings to authenticate with the RADIUS server. Option D is also true because the device does not support 802.1X authentication, which means that it does not have the capability or software to perform 802.1X authentication. Option B is false because the device has not been quarantined for 3600 seconds, but rather has a session timeout of 3600 seconds, which is the default value for 802.1X sessions. Option C is false because the device has not been assigned the guest VLAN, but rather has been assigned the default VLAN, which is VLAN 1.

NEW QUESTION 5
Refer to the exhibit.

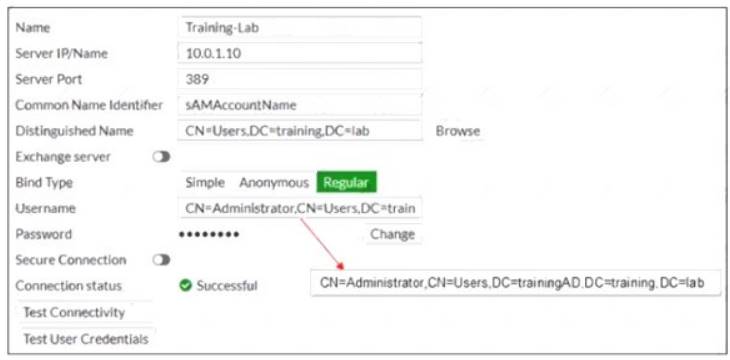

Examine the LDAP server configuration shown in the exhibit Note that the Username setting has been expanded to display Its full content
On the Windows AD server 10.0.1.10, the administrator used dsquery. which returned the following output:

According to the output which FortiGate LDAP setting is configured incorrectly''

• A. Common Name Identifier
• B. Bind Type
• C. Distinguished Name
• D. Username

Answer: C

Explanation:
According to the exhibits, the LDAP server configuration on FortiGate has the Distinguished Name set to “dc=training,dc=lab”. However, according to the output of the dsquery command on the Windows AD server, the Distinguished Name of the domain should be “dc=trainingAD,dc=training,dc=lab”. Therefore, option C is true because the Distinguished Name on FortiGate is configured incorrectly and does not match the actual Distinguished Name of the domain. Option A is false because the Common Name Identifier on FortiGate is configured correctly as “cn”. Option B is false because the Bind Type on FortiGate is configured correctly as “Regular”. Option D is false because the Username on FortiGate is configured correctly as “cn=admin,cn=users,dc=trainingAD,dc=training,dc=lab”.

NEW QUESTION 6
Which two statements about the guest portal on FortiAuthenticator are true? (Choose two.)

• A. Each remote user on FortiAuthenticator can sponsor up to 10 guest accounts
• B. Administrators must approve all guest accounts before they can be used
• C. The guest portal provides pre and post-log in services
• D. Administrators can use one or more incoming parameters to configure a mapping rule for the guest portal

Answer: CD

Explanation:
According to the FortiAuthenticator Administration Guide2, “The guest portal provides pre and post-log in services for users (such as password reset and token registration abilities), and rules and replacement messages can be configured.” Therefore, option C is true. The same guide also states that “Administrators can use one or more incoming parameters to configure a mapping rule for the guest portal.” Therefore, option D is true. Option A is false because remote users can sponsor any number of guest accounts, as long as they do not
exceed the maximum number of guest accounts allowed by the license. Option B is false because administrators can choose to approve or reject guest accounts, or enable auto-approval.

NEW QUESTION 7
Refer to the exhibit.

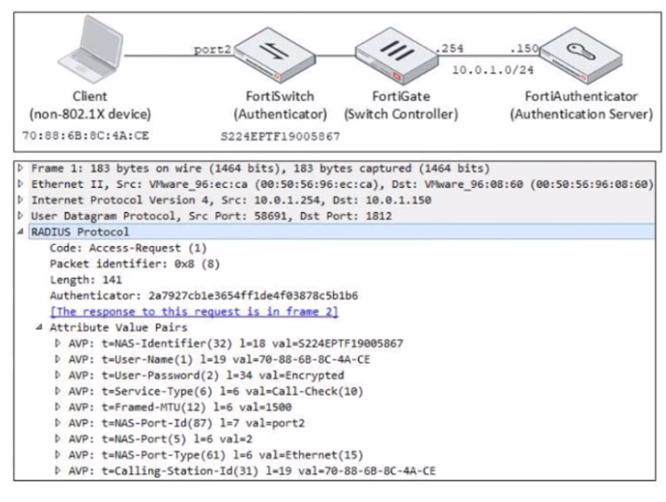

Examine the network diagram and packet capture shown in the exhibit
The packet capture was taken between FortiGate and FortiAuthenticator and shows a RADIUS Access-Request packet sent by FortiSwitch to FortiAuthenticator through FortiGate
Why does the User-Name attribute in the RADIUS Access-Request packet contain the client MAC address?

• A. The client is performing AD machine authentication
• B. FortiSwitch is authenticating the client using MAC authentication bypass
• C. The client is performing user authentication
• D. FortiSwitch is sending a RADIUS accounting message to FortiAuthenticator

Answer: B

Explanation:
According to the exhibit, the User-Name attribute in the RADIUS Access-Request packet contains the client MAC address of 00:0c:29:6a:2b:3d. This indicates that FortiSwitch is authenticating the client using MAC authentication bypass (MAB), which is a method of authenticating devices that do not support 802.1X by using their MAC address as the username and password. Therefore, option B is true because it explains why the User-Name attribute contains the client MAC address. Option A is false because AD machine authentication uses a computer account name and password, not a MAC address. Option C is false because user authentication uses a user name and password, not a MAC address. Option D is false because FortiSwitch is sending a RADIUS Access-Request message to FortiAuthenticator, not a RADIUS accounting message.

NEW QUESTION 8
An administrator has configured an SSID in bridge mode for corporate employees All APs are online and provisioned using default AP profiles Employees are unable to locate the SSID to conned
Which two configurations can the administrator verify? (Choose two)

• A. Verify that the broadcast SSID option is enabled in the SSID configuration
• B. Verify that the Block Intra-SSID Traffic (intra-vap-privacy) option in the SSID configuration is disabled
• C. Verify that the SSID to an AP group that should be broadcasting the SSID is applied
• D. Verify that the SSID is manually applied on AP profiles for both 2 4 GHz and 5 GHz radios

Answer: AC

Explanation:
According to the FortiAP Configuration Guide1, “To enable the SSID, you must select at least one channel for the radio. If no channels are selected, the SSID will not be enabled. You must also enable Broadcast SSID.” Therefore, option A is true because the broadcast SSID option allows the SSID to be visible to wireless clients. Option C is also true because the SSID must be applied to an AP group that contains the APs that should be broadcasting the SSID. According to the same guide1, “You can create AP groups and assign them to different locations or departments. You can then apply different settings, such as SSIDs, to each group.” Option B is false because blocking intra-SSID traffic prevents wireless clients on the same SSID from communicating with each other, which is not related to broadcasting the SSID. Option D is false because the SSID can be applied to an AP group or a global profile, which will automatically apply to all APs, without manually configuring each AP profile.

NEW QUESTION 9
Refer to the exhibit.

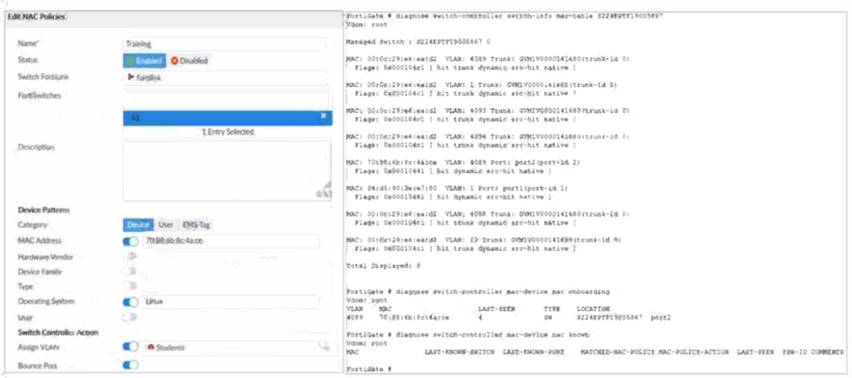

Examine the FortiManager configuration and FortiGate CLI output shown in the exhibit
An administrator is testing the NAC feature The test device is connected to a managed FortiSwitch device
{S224EPTF19"53€7)onpOrt2
After applying the NAC policy on port2 and generating traffic on the test device the test device is not matching the NAC policy therefore the test device remains m the onboarding VLAN
Based on the information shown in the exhibit which two scenarios are likely to cause this issue? (Choose two.)

• A. Management communication between FortiGate and FortiSwitch is down
• B. The MAC address configured on the NAC policy is incorrect
• C. The device operating system detected by FortiGate is not Linux
• D. Device detection is not enabled on VLAN 4089

Answer: AB

Explanation:
According to the FortiManager configuration, the NAC policy is set to match devices with the MAC address of 00:0c:29:6a:2b:3c and the operating system of Linux.However, according to the FortiGate CLI output, the test device has a different MAC address of 00:0c:29:6a:2b:3d. Therefore, option B is true. Option A is also true because the FortiSwitch device status is shown as down, which means that the management
communication between FortiGate and FortiSwitch is not working properly. This could prevent the NAC policy from being applied correctly. Option C is false because the device operating system detected by FortiGate is Linux, which matches the NAC policy. Option D is false because device detection is enabled on VLAN 4089, as shown by the command “config switch-controller vlan”.

NEW QUESTION 10
Refer to the exhibit

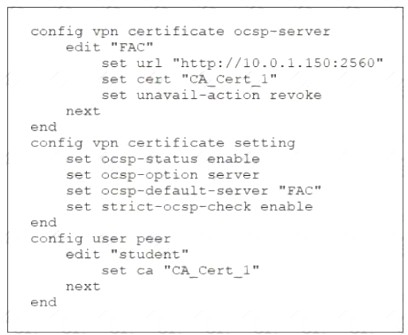

Examine the sections of the configuration shown in the output
What action will FortiGate take when verifying the student certificate through OCSP?

• A. Reject the student certificate if the OCSP server replies that the student certificate status is unknown
• B. Not verify the OCSP server certificate
• C. Use the OCSP URL included in the student certificate to verify the student certificate
• D. Consider the student certificate status as valid if the OCSP server is unreachable

Answer: C

Explanation:
According to the exhibit, the FortiGate configuration has ocsp-status enabled and ocsp-option set to certificate.
This means that FortiGate will use OCSP to verify the revocation status of certificates presented by
clients. According to the FortiGate Administration Guide2, “If you select certificate, FortiGate uses an OCSP URL included in a certificate to verify that certificate.” Therefore, option C is true because it describes what action FortiGate will take when verifying the student certificate through OCSP. Option A is false because FortiGate will not reject the student certificate if the OCSP server replies that the student certificate status is unknown, but rather accept it as valid. Option B is false because FortiGate will verify the OCSPserver certificate by default, unless strict-ocsp-check is disabled. Option D is false because FortiGate will not consider the student certificate status as valid if the OCSP server is unreachable, but rather reject it as invalid.

NEW QUESTION 11
Refer to the exhibits

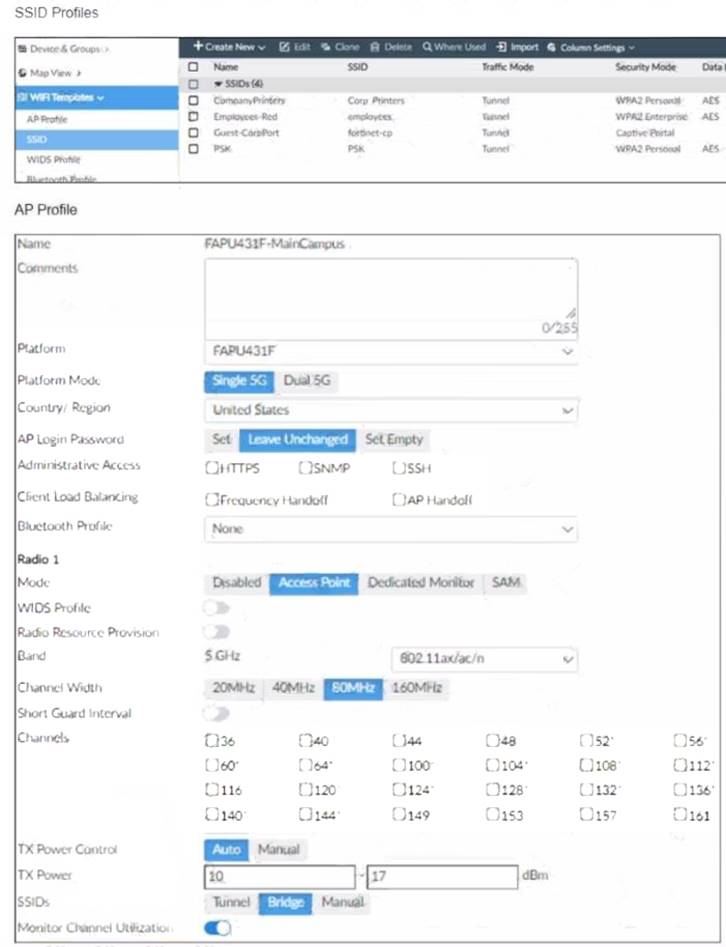

The exhibits show the wireless network (VAP) SSID profiles defined on FortiManager and an AP profile assigned to a group of APs that are supported by FortiGate
None of the APs are broadcasting the SSlDs defined by the AP profile
Which changes do you need to make to enable the SSIDs to broadcast?

• A. In the SSIDs section enable Tunnel
• B. Enable one channel in the Channels section
• C. Enable multiple channels in the Channels section and enable Radio Resource Provision
• D. In the SSIDs section enable Manual and assign the networks manually

Answer: B

Explanation:
According to the FortiManager Administration Guide1, “To enable the SSID, you must select at least one channel for the radio. If no channels are selected, the SSID will not be enabled.” Therefore, enabling one channel in the Channels section will allow the SSIDs to broadcast.

NEW QUESTION 12
......
