Real Avaya 7130X Dumps Online

NEW QUESTION 1
For an Avaya SIP telephone, working as a Remote Worker via the Avaya Session Border Controller for Enterprise (SBCE), which IP address should be configured in the Server List of the one-X® Communicator?

• A. the SBCE Internal Interface allocated for Mobile Workspace Endpoint
• B. the SBCE External Interface allocated for Mobile Workspace Endpoint
• C. the Internal Avaya Aura® Session Manager SM100 IP Address
• D. the Avaya Aura® Session Manager External Interface allocated for Mobile Workspace Endpoints.

Answer: D

Explanation:
Remote Worker Avaya one-X Communicator Configuration
The following screens illustrate Avaya one-X Communicator administration settings for the Remote Worker used in the reference configuration.
Example:
* 1. On the Avaya one-X Communicator application running on the PC, click on the Settings icon on the top right to display the Settings window.
* 2. Click on Telephony, the General Settings window will appear. The following values were used in the reference configuration:
Under Using: select SIP (SIP must be selected; H.323 is not supported for Remote
Workers).
* Under Server List, click Add (the Add Server window to the right will appear).
* Under Proxy Server enter 192.168.157.180 (This is one of the two “public” IP addresses for interface B1 on the Avaya SBCE used for Remote Worker access to
Session Manager (public IP not used for relay services).
Etc.
References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura® Communication Manager Rel. 6.3 and Avaya
Aura® Session Managers Rel. 6.3 - Issue 1.0, page 81
https://downloads.avaya.com/css/P8/documents/100183254

NEW QUESTION 2
What identifies that the Avaya Breeze™ server is using Identity Certificates that have been signed by Avaya Aura® System Manager (SMGR)?

• A. if the Issuer Name states “O=AVAYA, OU=MGMT, CN= System Manager CA” for the Security Module SIP Identity Certificate
• B. if the replication status is showing ‘Synchronized’ with a green background color
• C. if a successfully installed WebRTC snap-in is used
• D. if the Entity Link between Avaya Aura® Session Manager (SM) and Avaya Breeze™ server is up

Answer: A

NEW QUESTION 3
To watch Avaya Session Border Controller for Enterprise (SBCE) messages in real-time as they pass
through the SBCE, which tool on the SIP command line do you use?

• A. traceSBC
• B. traceSM –m
• C. traceTOOL
• D. trace

Answer: A

Explanation:
The tcpdump tool is the main troubleshooting tool of Avaya SBCE, which can capture network traffic.
Using tcpdump is a reliable way to analyze the information arriving to and sent from the SBC.
However, tcpdump has its own limitations, which can make troubleshooting difficult and time
consuming. This traditional tool is not useful in handling encrypted traffic and real-time troubleshooting.
The traceSBC tool offers solutions for both issues.
In Real-time mode, traceSBC must be on active Avaya SBCE. traceSBC is started without specifying a
file in the command line parameters. The tool automatically starts processing the log files. The live
capture can be started and stopped anytime without affecting service.
Example:
# traceSBC
References: Troubleshooting and Maintaining Avaya Session Border Controller for Enterprise
(December 2015), page 27
https://downloads.avaya.com/css/P8/documents/101014063

NEW QUESTION 4
An Avaya Aura® Messaging (AAM) server intended to store Voice Messages in Avaya Message Store Mode, and you are configuring that server for integration with an Avaya Aura® Core.
In Messaging Administration > Server Settings > Server Role/AxC Address, which Server Role must be chosen at the “Roles for this server” field?

• A. Application Only
• B. Storage Only
• C. Storage & Application
• D. AMSM

Answer: C

Explanation:
Incorrect Answers:
B: When you select a storage-only role for the server, SMI does not display the following pages, which are specific to the application role:
* Server Information: Voice Channels (Application), and Cache Statistics (Application)
Etc.
References: Administering Avaya Aura® Messaging 6.3.3, Release 6.3.3 (February 2017), page 44
https://downloads.avaya.com/css/P8/documents/101013158

NEW QUESTION 5
By default, which Codec does Avaya Aura® Messaging (AAM) support?

• A. G.726
• B. G.722
• C. G.711
• D. G.729

Answer: C

Explanation:
You must configure the Messaging system to use the G.711 encoding format.
Note: The G.711 format provides the highest audio quality especially when voice networks use multiple encodings and decodings. Avaya requires that you use the
G.711 encoding format in Messaging systems that support TTY devices.
The G.711 encoding format uses a higher encoding rate than GSM. The G.711 encoding format therefore produces larger files and requires more storage space for
messages. Messaging provides customers with adequate storage space for message playback and networking.
References: Administering Avaya Aura® Messaging, Release 6.2 Issue 2.2 (December 2013) , page 201
https://downloads.avaya.com/css/P8/documents/100172127

NEW QUESTION 6
Which component converts WebRTC Media Stream to SIP Media Stream?

• A. HTTP Reverse Proxy
• B. Avaya Aura® Media Server (AAMS)
• C. STUN/TURN server
• D. G.450/430 or G.650 Medpro board

Answer: C

Explanation:
Provisioning Avaya Aura® Media Server for the WebRTC Snap-in.
Procedure
* 1. Log in to the Avaya Aura®
Media Server Element Manager.
* 2. Check that Avaya Aura®
Media Server nodes and routes are set up correctly.
See Deploying Avaya Breeze™ for details on configuring Avaya Aura®
Media Server forAvaya Breeze™.
* 3. Go to System Configuration > Server Profile > General Settings, enable Firewall NAT Tunneling Media Processor and then click Save.
* 4. Go to System Configuration > Signaling Protocols > SIP > General Settings, enable Always use SIP default outbound proxy, and then click Save.
Go to System Configuration > Media Processing > ICE > TURN/STUN Servers > Accounts and create a TURN/STUN account. This account ID and password must
match the account created on the Avaya SBCE.
* 6. Go to System Configuration > Media Processing > ICE > TURN/STUN Servers > Servers to add the TURN/STUN connection to the Avaya SBCE server
Etc.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 23
https://downloads.avaya.com/css/P8/documents/101013939

NEW QUESTION 7

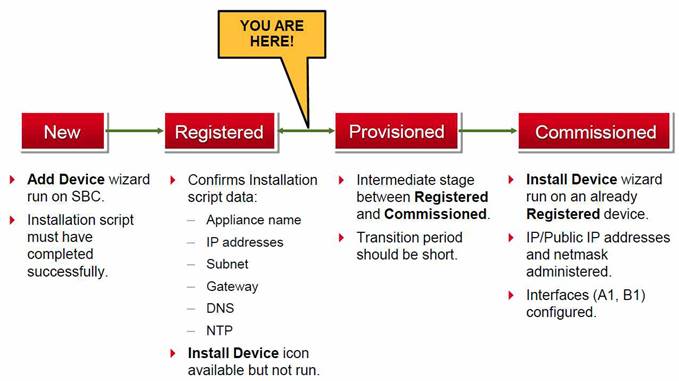

The provisioning script automatically runs as part of the first boot-up of the Avaya Session Border
Controller for Enterprise (SBCE). During this process you assign the Management IP address to the
SBCE. You browse to the Element Management System (EMS) to continue to install the SBCE.
On the System Management > Devices web page, which status does the SBCE display before the
Install link is clicked?

• A. Ready
• B. Provisioned
• C. Registered
• D. Commissioned

Answer: C

Explanation:

References: Avaya Aura Session Border Controller Enterprise (2012), page 201

NEW QUESTION 8
Which statement about Avaya Aura® Presence Services 7.x snap-in licensing is true?

• A. It requires an instance-license.
• B. It requires a per-user license.
• C. It does not require a license to work.
• D. It requires a license file for each snap-in installed.

Answer: C

Explanation:
Presence Services snap-in does not require a license to work.
References: Avaya Aura® Presence Services Snap-in Reference. Release 7.0.1 (December 2016), page 17
https://downloads.avaya.com/css/P8/documents/101013646

NEW QUESTION 9
In Avaya Aura® Messaging (AAM) 6.3, how many Call Answering Ports can one Application Server support?

• A. up to 100 Ports
• B. up to 10 Ports
• C. up to 1000 Ports
• D. up to 10000 Ports

Answer: A

Explanation:
The Call Answer Ports range is 2–100.
References: Administering Avaya Aura Messaging, page 34
https://downloads.avaya.com/css/P8/documents/100112131

NEW QUESTION 10
After running the Install wizard on Avaya Session Border Controller for Enterprise (SBCE), you added a Public Outside IP address to the B1 interface. You try to ping this IP address from a PC in the same subnet but it falls.
What would you do first to resolve the issue?

• A. Restart Applications.
• B. Set the Default Gateway router IP address, navigate to the Interfaces and Enable the B1 Interface.
• C. Reboot SBCE.
• D. Navigate to Device Specific Settings > Network Management > Interfaces and Enable the B1 interface.

Answer: D

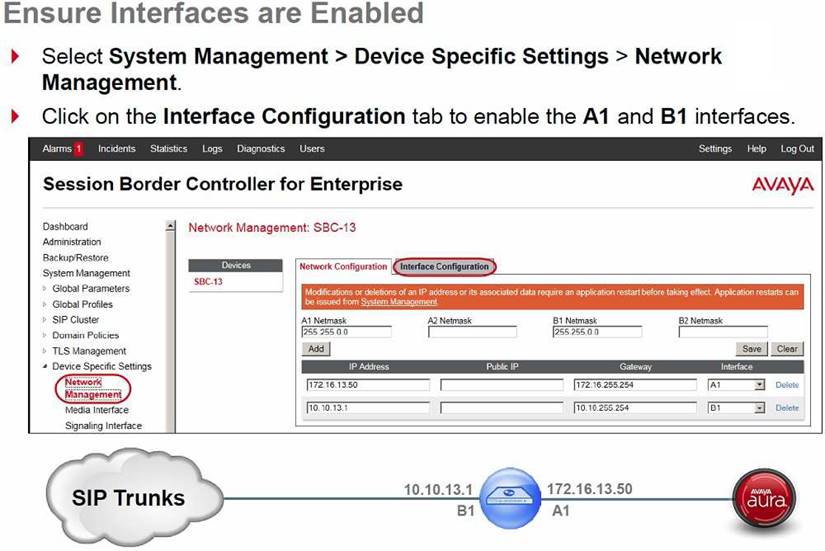

Explanation:
The interface might need to be enabled.

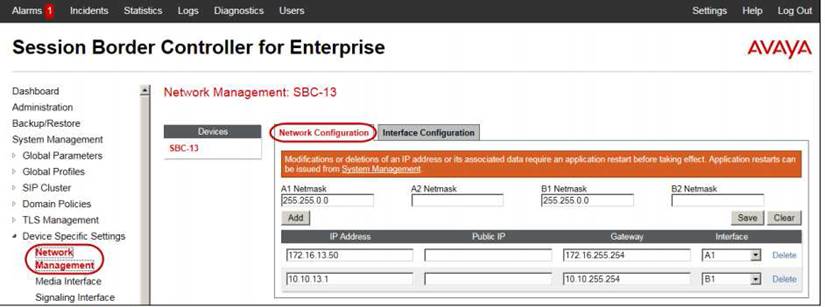

* 1. The A1 and B1 interfaces display on the Network Configuration tab.

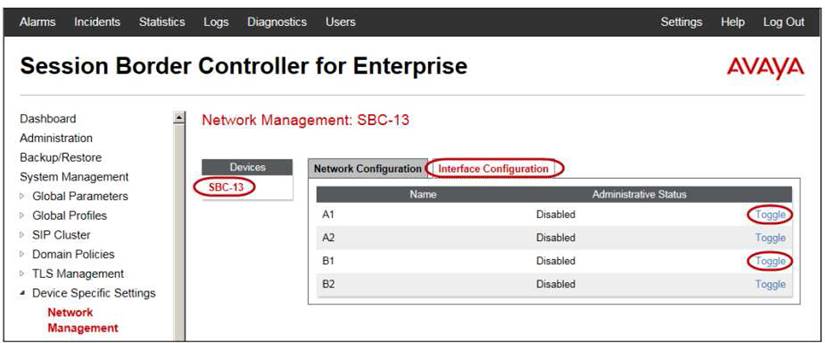

* 2. Click on the Interface Configuration tab.

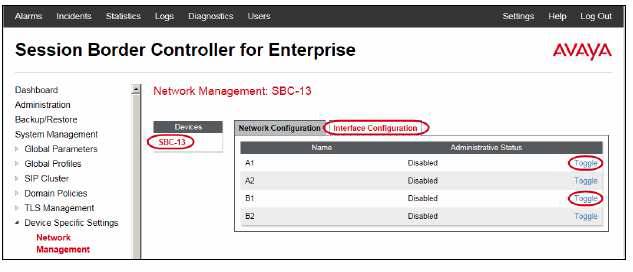

* 3. Click the Toggle link for both the A1 and the B1 interfaces.
The Administrative Status for both A1 and B1 changes to Enabled
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 204

NEW QUESTION 11
How many Server Flows and/or Subscriber Flows are required for SIP Trunking?

• A. one Subscriber Flow and two Server Flows
• B. a minimum of two Subscriber Flows
• C. one Subscriber Flow and one Server Flow
• D. a minimum of two Server Flows

Answer: A

Explanation:
Two types of flows need to be defined for the proper routing of SIP messages from and to the endpoints and the SIP server.
Server Flows – Routing destination sent by SIP server (Session Manager).
Subscriber Flows – Routing destination sent by SIP endpoints.

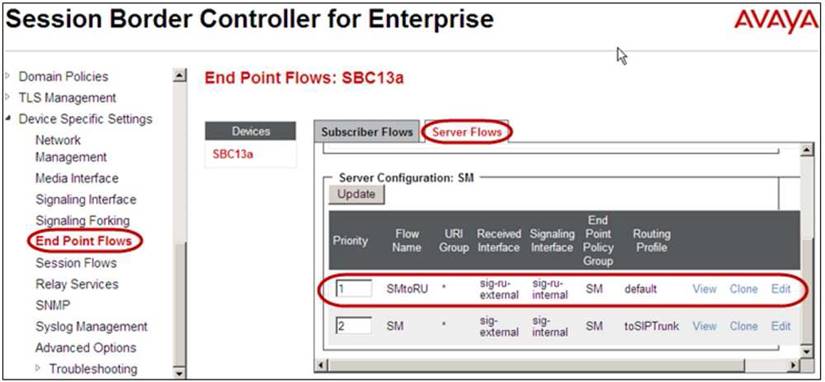

Example, Server Flows:

References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 540, 546

NEW QUESTION 12
To set Timers, URI Manipulation, and Header Manipulation that the Avaya Session Border Controller for Enterprise (SBCE) will use when signaling to the far-end server; a profile like “avaya-ru” is provided by default.
When configuring the Server Configuration, you must link to which type of Global profile?

• A. Signaling
• B. Routing
• C. Topology Hiding
• D. Server Interworking

Answer: D

Explanation:
The standard Avaya profile “avaya-ru” is cloned for the Call Server Interworking Profile.
The Interworking function of the Global Profiles feature enables the SBCE to function in an enterprise VoIP network using different SIP protocols.
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 339

NEW QUESTION 13
What are the three components of Avaya Aura® Messaging (AAM)? (Choose three.)

• A. Messaging Distributor
• B. Application Server
• C. Messaging Store
• D. AxC/Directory
• E. SM100 Module

Answer: BCD

Explanation:
The AXC connector is always co-resident with the Avaya message store.

References: Administering Avaya Aura® Messaging Release 6.2, Issue 2.2 (December 2013)
https://downloads.avaya.com/css/P8/documents/100172127

NEW QUESTION 14
In Avaya Aura® Messaging 6.3, which statement is true about Avaya Aura® Messaging (AAM) capacities of a system utilizing the Standard Capacity (non-High Capacity) Message Store template?

• A. One Message Store Server supports up to 60000 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
• B. One Message Store Server supports up to 6000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.
• C. One Message Store Server supports up to 600 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
• D. One Message Store Server supports up to 1000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.

Answer: B

Explanation:
Dedicated AxC/Directory server: A physical server that manages notification capabilities and the LDAP database and provides communications between application servers and the thirdparty storage server. This server also stores user properties and name and greeting recordings.
Not all configurations require a dedicated AxC/Directory server because the AxC/Directory role runs on the Avaya-provided message store. You only need a
dedicated AxC/Directory server for:
Release 6.2 and earlier Messaging systems with a third-party storage server.
Release 6.3 or later systems with more than one application server, or more than 6000 users using a third-party storage server, such as Microsoft Exchange.
References: Avaya Aura® Messaging Overview and Specification, Release 6.3.2 (January 2015) , page 20
https://downloads.avaya.com/css/P8/documents/101004642

NEW QUESTION 15
On Avaya Session Border Controller for Enterprise (SBCE), which statement about how to examine messages with Wireshark is true?

• A. You have to start and stop the .pcap file using command line.
• B. You can start and stop a Packet Capture in the EMS web GUI and then you can open the .pcap file with Wireshark.
• C. Wireshark runs directly on Avaya Session Border Controller for Enterprise (SBCE).
• D. They cannot be examined on this version.

Answer: B

Explanation:
Viewing the Packet Capture with Wireshark.
* 0. Start a Packet Capture in the EMS web GUi.
* 1. After the capture completes, click the Capture tab.
* 2. Double-click on the capture file name.
* 3. The File Download window opens.
* 4. Click Open.
The Wireshark application opens the trace.
Note: The Wireshark call tracing tool can be used on virtual desktop for vLabs.
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 468

NEW QUESTION 16
Which configuration must be completed before configuring a TSAPI link on Avaya Aura® Application Enablement Services (AES)?

• A. A CTI link must be configured on Avaya Aura® Communication Manager (CM) first.
• B. A Switch Connection must be configured on Avaya Aura® Application Enablement Services (AES) first.
• C. A signaling-group must be configured on Avaya Aura® Communication Manager (CM) first.
• D. A CTI-user must be configured on Avaya Aura® Application Enablement Services (AES) first.

Answer: A

Explanation:
If you are administering the AE Server for TSAPI, JTAPI, DMCC with Call Control, Telephony Web Service, or an AE Services integration (Microsoft or IBM
Sametime), you must administer a CTI link from Communication Manager to AE Services.
Follow these steps from a Communication Manager SAT to administer a CTI link type ADJ-IP.
Procedure
* 1. Type add cti-link <link number>, for example add cti-link 5.
* 2. Complete the CTI LINK form as follows:
* a. In the Extension field, type <station extension>, for example 70001.
* b. In the Type field, type ADJ-IP.
* c. In the Name field, type <name of AE Server>, for example aeserver1.
References: Avaya Aura® Application Enablement Services Administration and Maintenance, page 30
Guide
https://downloads.avaya.com/css/P8/documents/100171737

NEW QUESTION 17
You are creating a SIP Entity for Avaya Aura® Engagement Development Platform – EDP / Avaya Breeze™.
What do you have to enter in the field labeled FQDN or IP Address?

• A. the Management IP-Address or FQDN of the Avaya Breeze™ platform.
• B. the SM100 IP-address or FQDN of the Avaya Breeze™ platform
• C. the IP-Address or FQDN of Core Platform Cluster
• D. the IP-Address or FQDN of general Purpose Cluster

Answer: A

Explanation:
Administering an Avaya Breeze instance
Before you begin
To complete this task you will need:
* The IP address of the Avaya Breeze Management Network Interface.
This is the same IP address you used when deploying the Virtual Machine (VM).
* The IP address including the network mask, and default gateway for the Avaya Breeze Security Module.
Procedure (see step 6 below)
* 1. On System Manager, in Elements, click Avaya Breeze.
* 2. Click Server Administration.
* 3. In the Avaya Breeze Server Instances list, click New.
* 4. In the SIP Entity field, select the SIP Entity that you created.
* 5. Ensure that the value in the UCID Network Node ID field is unique across the solution deployment so that it does not conflict with other UCID-generating entities
like Avaya Aura Communication Manager or Avaya Aura Experience Portal.
* 6. In the Management Network Interface FQDN or IP Address field, type the IP address of the Avaya Breeze Management Network Interface.
References: Deploying Avaya Breeze, Release 3.1, (September 2016), page 47
https://downloads.avaya.com/css/P8/documents/101014426

NEW QUESTION 18
Which two options describe the purpose of TraceSM in the Avaya Aura® Presence Services? (Choose two.)

• A. It captures Packet-Size statistics from every telephone call in Avaya Aura® 7.
• B. It captures real-time XMPP traffic.
• C. It captures Voice and Video Calls media packets in real-time.
• D. It captures live traces for both SIP and H323/XMPP clients.
• E. It captures Contact details from every user connected to Avaya Aura® Presence Services.

Answer: BD

Explanation:
It’s important to know that traceSM is a real-time capture tool.
traceSM is an interactive perl script that allows an administrator to capture, view, and save call processing
activity on a Session Manager. While not as powerful or versatile as wireshark, traceSM is absolutely essential when it comes to working with Avaya SIP. First off, it allows you to view SIP messages even if they have been encrypted with TLS.
References: https://andrewjprokop.wordpress.com/2014/06/02/a-necessary-guide-to-the-avaya-tracesm-utility/

NEW QUESTION 19
Which three functionalities does WebRTC provide? (Choose three.)

• A. NAT / Firewall Traversal
• B. adds click-to-call capabilities from a web application to an Avaya endpoint
• C. Internet-friendly codecs and Privacy
• D. real-time audio and video conferencing

Answer: ABD

Explanation:
* One of the primary differentiating features for the WebRTC Snap-in is that the web application handles authentication and authorization of calls. This includes the
capability to assert a calling user’s phone number and restrict the numbers that can be called.
* The Avaya SBCE enables secure firewall traversal for HTTP and SRTP packets, facilitates sending DTLS to provide secured key exchange for the SRTP flow,
and takes care of all security requirements mentioned in the TURN protocol for the solution.
* WebRTC can be a game changer for enterprise communications and customer engagement. Enterprises can now add real-time communications to any website.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 9
https://downloads.avaya.com/css/P8/documents/101013939

NEW QUESTION 20
A company is deploying Avaya Session Border Controller for Enterprise (SBCE) to support SIP trunking.
What is the minimum number of IP-addresses they need to assign to the private and public Network Interface Cards (NICs)?

• A. Two addresses are assigned to the private NIC and two addresses are assigned to the public NIC.
• B. One address is assigned to the private NIC and one address is assigned to the public NIC.
• C. Two addresses are assigned to the private NIC and one address is assigned to the public NIC.
• D. One address is assigned to the private NIC and two addresses are assigned to the public NIC.

Answer: B

Explanation:
Example configuration:

References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 305

NEW QUESTION 21
In which location is the AAMS URI ‘ce-msml@avaya.com’ configured?

• A. Elements > Breeze > Configuration > HTTP Security and as a Regular Expression
• B. Elements > Breeze > Configuration > HTTP Security and as a Dial Pattern
• C. Home > Elements > Breeze > Configuration > Avaya Aura® Media Server and as a Dial Pattern
• D. Home > Elements > Breeze > Configuration > Avaya Aura® Media Server and as a Regular Expression

Answer: D

Explanation:
Creating the Avaya Aura Media Server Routing Pattern
Procedure
* 1. On System Manager, click Elements > Routing > Routing Policies .
* 2. Click New.
* 3. Type a Name for the Routing Policy.
* 4. From the SIP Entity as Destination field, click Select.
* 5. Select the Avaya Aura®
Media Server SIP Entity that you created.
Select the Local Host Name FQDN SIP Entity if you are using High Availability for the Avaya Aura®
Media Server routing.
* 6. Click Commit .
* 7. Navigate to Home > Elements > Routing > Regular Expressions and click New.
* 8. In the Pattern field, type ce-msml@<sip-domain>.*
This sip-domain value must match:
• The SIP domain that you entered in the Home > Elements > Routing > Domains page.
• The default SIP domain that you entered on the Avaya Breeze™ Cluster Administration page.
* 9. Click Commit
https://downloads.avaya.com/css/P8/documents/101014426

NEW QUESTION 22
Which Avaya Breeze™ Cluster type is the Avaya Aura® Presence Services snap-in installed on?

• A. Presence Services
• B. Core Platform
• C. General Purpose
• D. IM_Presence

Answer: B

Explanation:
Verifying that Presence Services snap-in is ready to support Presence and IM
Procedure
* 1. On the System Manager web console, navigate to Elements > Avaya Breeze> Cluster Administration.
* 2. Locate the row for the cluster, and verify that:
* The Cluster Profile field shows Core Platform.
etc.
References: Avaya Aura® Presence Services Snap-in Reference. Release 7.0.1 (December 2016), page 224
https://downloads.avaya.com/css/P8/documents/101013646

NEW QUESTION 23
When looking at Avaya Aura® System Manager – Home > Services > Replication, what is the name of the replica group representing the EDP / Avaya Breeze™ instances?

• A. CollaborationEnvironment_7.0
• B. Avaya Breeze™_7.0
• C. CollaborationEnvironment_3.1
• D. Engagement Development Platform EDP_7.0

Answer: C

Explanation:
Confirming that Avaya Breeze successfully replicates with System Manager
Procedure
* 1. On the System Manager web console, navigate to Services > Replication.
* 2. In Replica Group column, click CollaborationEnvironment_3.1.
* 3. In Replica Node Host Name column, locate your newly-deployed Avaya Breeze.
* 4. After 2 – 15 minutes, verify that the status of the Synchronization Status field is green/ Synchronized. If not, see Repairing replication between Avaya Breeze™
and System Manager
References: Avaya Aura® Presence Services Snap-in Reference, Release 7.0.1, (December 2016), page 24
https://downloads.avaya.com/css/P8/documents/101013646

NEW QUESTION 24
In Avaya Session Border Controller for Enterprise (SBCE), what is the default state of an Interface?

• A. Deployed
• B. Enabled
• C. Disabled
• D. Active

Answer: C

Explanation:
Example:
Commission the SBC—SBC Configuration
* 1. The A1 and B1 interfaces display on the Network Configuration tab.
* 2. Click on the Interface Configuration tab:

* 3. Click the Toggle link for both the A1 and the B1 interfaces.
The Administrative Status for both A1 and B1 changes to Enabled:
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 203

NEW QUESTION 25
......
