The Update Guide To 75940X Exam Topics

NEW QUESTION 1
Avaya Orchestrator monitors the ACP 4200 components by organizing them into which two groups? (Choose two.)

• A. Power
• B. Virtual Machines
• C. Storage
• D. Applications

Answer: AC

NEW QUESTION 2
Which Extreme Networks switch model is used in a new ACP 4200 release 4.0?

• A. VSP 4850
• B. VSP 7254
• C. VSP 8400
• D. VSP 7024

Answer: B

NEW QUESTION 3
Which statement about the Nimble Storage used in ACP 4200 4.0 is true?

• A. It is connected directly to the ESXi hosts via multiple 10G links.
• B. It is connected directly to the ESXi hosts via multiple 1G links.
• C. It is connected to the network switches via multiple 10G links.
• D. It is connected to the network switches via multiple 40G links.

Answer: C

NEW QUESTION 4
When powering up the virtual machines, what is the first virtual machine that needs to be powered on?

• A. vCenter Server
• B. WebLM
• C. System Manager
• D. Communication Manager

Answer: A

NEW QUESTION 5
Which statement about the factory default configuration of the Avaya Session Border Controller for Enterprise (ASBCE) in ACP 4200 is true?

• A. The A1 LAN interface of the SBC is connected to the Application 3 VLAN of the ACP 4200.
• B. The A1 LAN interface of the SBC is connected to the Application 1 VLAN of the ACP 4200.
• C. The B1 LAN interface of the SBC is connected to the Application 2 VLAN of the ACP 4200.
• D. The M1 LAN interface of the SBC is connected to the Application 3 VLAN of the ACP 4200.

Answer: A

NEW QUESTION 6
Why does enabling VMware Enhanced vMotion Compatibility (EVC) prevent vMotion migrations from falling?

• A. Because of incompatible DRS rules across the cluster
• B. Because of incompatible HA rules across the cluster
• C. Because of insufficient memory across the cluster
• D. Because of incompatible CPUs across the cluster

Answer: D

NEW QUESTION 7
Which two statements about the HP Nimble storage systems used in ACP 4200 are true? (Choose two.)

• A. ACP 4200 may use the HP Nimble 33 Base unit with up to 2 Expansion units.
• B. ACP 4200 may use the HP Nimble 16 Base unit with up to 5 Expansion units.
• C. ACP 4200 may use the HP Nimble 16 Base unit with up to 2 Expansion units.
• D. ACP 4200 may use the HP Nimble 33 Base unit with up to 5 Expansion units.

Answer: AB

NEW QUESTION 8
When a Layer 2-only networking topology is deployed, what is the behavior of the ACP 4200?

• A. It will support only a single management VLAN.
• B. It will extend VLANs out to the Data Center routers which will provide Layer 3 routing.
• C. It will support only a single application VLAN.
• D. It will have 802.1Q tagging enabled on all ports of the VSP switches.

Answer: B

NEW QUESTION 9
In which two situations does the Customer and Network Lifecycle workbook need to be updated? (Choose two.)

• A. On the 31st of January every year, even if no changes have been made to the ACP 4200.
• B. When an ACP 4200 component password is changed.
• C. When a new Administrator is given access to the ACP 4200.
• D. When a new host server is added to the ACP 4200.

Answer: BD

NEW QUESTION 10
An administrator is examining the Hosts monitored by Avaya Orchestrator. Which two are examples of these Hosts? (Choose two.)

• A. Storage Devices
• B. vCenter Server Appliance
• C. Network Switches
• D. System Manager

Answer: AC

NEW QUESTION 11

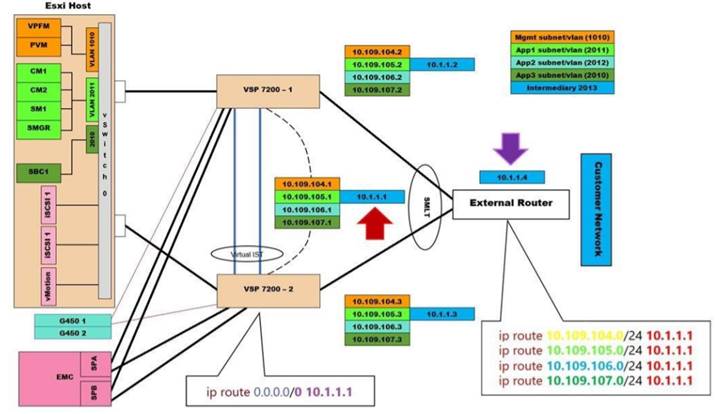

Refer to the exhibit.

What does the IP address 10.1.1.1 represent?

• A. The IP address of the EMC storage
• B. The SMLT IP address of the two VSP 7200 switches
• C. The Virtual IST IP address of the two VSP 7200 switches
• D. The VRRP IP address of the two VSP 7200 switches

Answer: D

NEW QUESTION 12

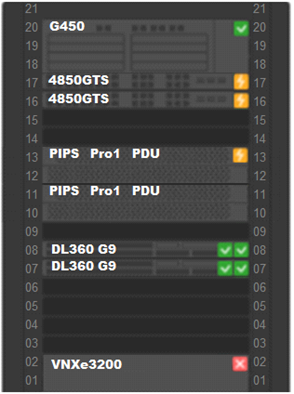

Refer to the exhibit.

display two Green status icon. What does this indicate?

• A. There are two Power Supplies associated with each server and both are responsive.
• B. There are two IP addresses associated with each server and both are responsive.
• C. The servers are paired together for redundancy purposes.
• D. The servers are very healthy.

Answer: D

NEW QUESTION 13
Aside from the difference in the depth of the enclosure, what other difference is there between the 48 Inch Model and 42 Inch Model of the ACP 4200 Avaya-branded Enclosure?

• A. There is no other difference between the 48 Inch Model and 42 Inch Model.
• B. The 48 Inch Model has a higher maximum wattage capacity compared to the 42 Inch Model.
• C. The 48 Inch Model has a higher maximum weight compared to the 42 Inch Model.
• D. The 48 Inch Model is only available in Grey while the 42 Inch Model is only available in Black.

Answer: B

Explanation:
Reference https://downloads.avaya.com/css/P8/documents/101054952 (15)

NEW QUESTION 14
An installation engineer is installing the power connections to the ACP 4200. What must the installation engineer be aware of?

• A. Before connecting the power, the power switches of all components in the rack must be in the OFF position.
• B. Power cables must only access the rack from the top of the rack.
• C. Power connections must be within 10 feet (3 meters) of the rack.
• D. Power cables must only access the rack from the bottom of the rack.

Answer: A

NEW QUESTION 15
The customer's networking team is considering connectivity options to the ACP 4200.
For which customers would an ACP 4200 Layer 2-only networking topology be deployed, and why?

• A. Customers who have a Layer 2 Data Cente
• B. The ACP will provide Layer 3 routing for the customer.
• C. Customers who wish to retain existing VLANs, subnets, and IP subnet
• D. The ACP will extend VLANs out to the Data Center routers which will provide Layer 3 routing.
• E. Customers who do not use Dynamic routing protocol
• F. The ACP will use static routes for connectivity to the Data Center.
• G. Customers who wish to upgrade their Data Center to Fabric Connec
• H. The ACP will use Fabric Extend to integrate with the customer's Data Center switches.

Answer: D

NEW QUESTION 16
Using VMware networking in ACP 4200, how are Virtual NICs mapped to physical NICs?

• A. Via DRS rules
• B. On a 1-to-1 basis
• C. Via Virtual Switches and Port Groups
• D. Via the VNIIC mapping tables

Answer: D
