Top Tips Of Far Out 300-810 Exam Price

NEW QUESTION 1

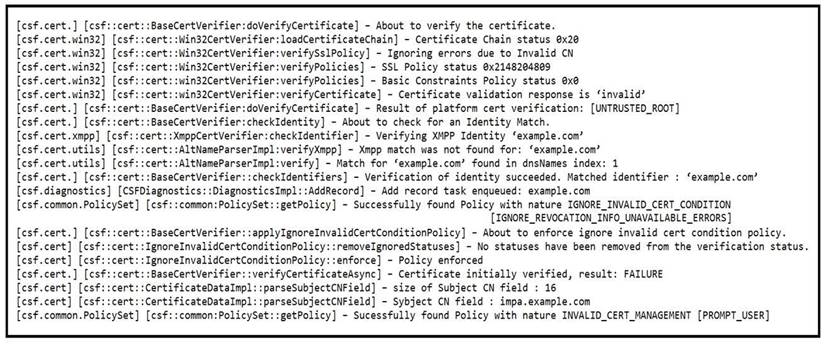

Refer to the exhibit.

Users report that they are prompted to accept server certificates when they initially run Cisco Jabber. An engineer removes these prompts to prevent confusion. Which statement about this scenario is true?

• A. Presentation of the certificates can be disabled by setting up Cisco IM&P servers into nonsecure mode.
• B. Nothing can be done to resolve this issue because certificates must be accepted by each Jabber user, per Cisco policy.
• C. These certificates are self-signed certificates, so they must be added manually to the user OS certificate stores.
• D. The behavior is a security breach because certificates are considered untrusted and as not coming from Cisco Collaboration servers.

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/jabber-windows/116637-trouble-jabber-00.html

NEW QUESTION 2
Which statement describes a role of AXL communications in the BLF Plug-in Service of the Cisco Unified Attendant Console?

• A. The AXL communications allow registered attendants to log in to Cisco Unified Communications Manager and receive calls.
• B. The AXL communications enable Device Resolution Manager to resolve the device statuses of operator and system devices.
• C. The AXL communications is required after installation to verify that the specified CTI manager or managers and Cisco Unified Attendant Console versions match.
• D. The AXL communications is required after installation to verify that the specified CTI manager or managers and Cisco Unified CM versions.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/cucmac/cuaca/12_0_4/design_guides/CUACA_DG_120401.pdf

NEW QUESTION 3
Which Cisco Unified Connections Manager service is required for users to control their desk phones using Cisco Jabber?

• A. Cisco CTIManager
• B. Cisco CTL Provider
• C. Cisco Presence Engine
• D. Cisco Serviceability Reporter

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/11_5/CJAB_BK_D00D8CBD_00_deployment-installation-guide-cisco-jabber115/CJAB_BK_D00D8CBD_00_deployment-installation-guide- ciscojabber115_chapter_0111.html

NEW QUESTION 4
What is the primary mechanism in Cisco Unity Connection that is used for toll fraud prevention?

• A. restriction tables
• B. fraud tables
• C. transfer rules
• D. calling search spaces

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/security/guide/10xcucsecx/10xcucsec020.pdf

NEW QUESTION 5

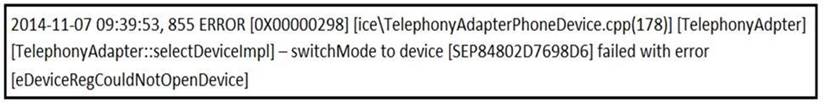

Refer to the exhibit.

Which end-user option can resolve this issue?

• A. Standard CTI Reception of SRTP Key Material
• B. Standard CTI Allow Calling Number Modification
• C. Standard CTI Allow Control of Phones Supporting Rollover Mode
• D. Standard CTI Allow Call Monitoring

Answer: A

NEW QUESTION 6
Which two methods does Cisco Jabber use for contact searching in an on-premises deployment model? (Choose two.)

• A. HTTP
• B. XMPP
• C. UDS
• D. LDAP
• E. SIP

Answer: CD

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/collab11/collab11/presence.html

NEW QUESTION 7
Which two command line arguments can you specify when installing Cisco Jabber for windows? (Choose two.)

• A. CISCO_UDS_DOMAIN
• B. TFTP_ADDRESS
• C. VOICEMAIL_SERVER_ADDRESS
• D. SERVICES_DOMAIN
• E. TFTP

Answer: DE

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/11_0/CJAB_BK_D657A25F_00_deployment-installation-guide-jabber-110/CJAB_BK_D657A25F_00_deployment-installation-guide-jabber- 110_chapter_01100.html#JABW_RF_CE43EF4C_00

NEW QUESTION 8

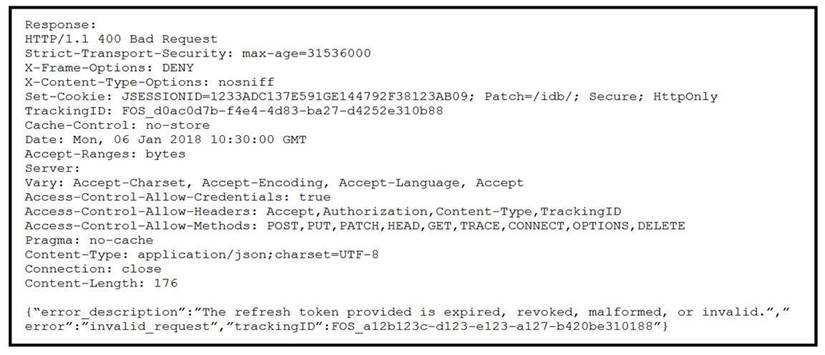

Refer to the exhibit.

Apple Push Notification integration is configured in a Cisco Unified IM and Presence deployment and has been working property. Administrators now report the error “Push notification settings cannot be configured. 400 Bad Request.” in the GUI, and HTTP logs are displaying the errors that are shown in the exhibit. Which action solves this issue?

• A. Fix the network connectivity to Apple iCloud.
• B. Reboot the IM&P cluster.
• C. Change the HTTP proxy settings to remove errors in request syntax.
• D. Update Refresh Token Manually.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/push_notifications/cucm_b_push-notifications-deployment-guide.pdf

NEW QUESTION 9

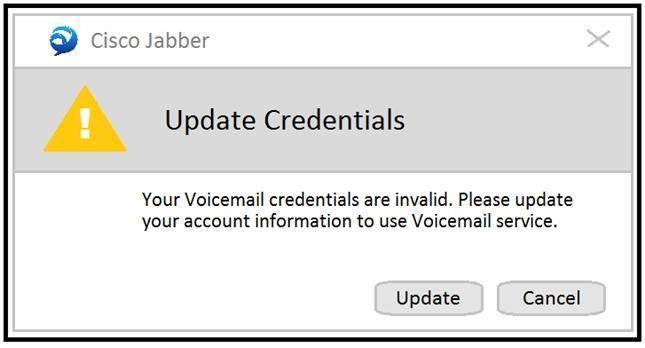

Refer to the exhibit.

Which action allows a remote Cisco Jabber user utilizing Mobile and Remote Access to automatically log in to a Cisco Unity Connection voicemail box via OAuth?

• A. Add CUCM under System Settings > Authz Servers in Cisco Expressway-E.
• B. Add CUCM under System Settings > Authz Servers in Cisco Expressway-C.
• C. Add CUCM under System Settings > Authz Servers in Cisco Unity.
• D. Add CUCM under System Settings > Authz Servers in Cisco Unity Connection.

Answer: D

Explanation:
Reference: https://community.cisco.com/t5/unified-communications/jabber-mra-unity-voice-mail-integration-issue/td-p/3195653

NEW QUESTION 10
An end user opened a ticket, stating that before logging in to Jabber for Windows, a warning is displayed that a server certificate has expired. Which two certificates must be verified on the Cisco Unified Communications Manager and IM&P deployment? (Choose two.)

• A. capf on Cisco Unified CM
• B. cup-xmpp on IM&P
• C. callmanager on Cisco Unified CM
• D. tomcat on Cisco Unified CM
• E. cup on IM&P

Answer: AB

NEW QUESTION 11
Which SAML component specifies the mapping of SAML assertion protocol message exchanges with standard messaging formats or communication protocols such as SOAP exchanges?

• A. SAML binding
• B. SAML assertion
• C. SAML profiles
• D. SAML protocol

Answer: A

Explanation:
Reference: https://en.wikipedia.org/wiki/Security_Assertion_Markup_Language

NEW QUESTION 12
SAML SSO is enabled in Cisco Unified Communications Manager. What happens when a browser-based client attempts to access a protected resource on a service provider?

• A. The browser follows the redirect and issues an HTTPS GET request to the IdP.
• B. The IdP checks for a valid browser session.
• C. The service provider generates a SAML authentication request.
• D. The SAML request is maintained as a query parameter in the GET request.

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/SAML_SSO_deployment_guide/12_5_1/cucm_b_saml-sso-deployment-guide-12_5/cucm_b_saml-sso-deployment-guide-12_5_chapter_01.html

NEW QUESTION 13
When Cisco IM and Presence is configured to use automatic fallback, how long does the Server Recovery Manager service wait for a failed service/server to remain active before an automatic fallback is initiated?

• A. 10 minutes
• B. 20 minutes
• C. 30 minutes
• D. 1 hour

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-communications-manager-im-presence-service/200958-IM-and-Presence-Server-High-Availability.html

NEW QUESTION 14
Which two protocols does the Cisco IM Presence service use to federate with external domains? (Choose two.)

• A. XMPP
• B. SNMP
• C. SIP
• D. SCCP
• E. SMPP

Answer: AC

Explanation:
Reference: https://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/cucm/im_presence/interdomain_federation/11_5_1/cup0_b_interdomain-federation-guide-imp-115.pdf

NEW QUESTION 15
DRAG DROP

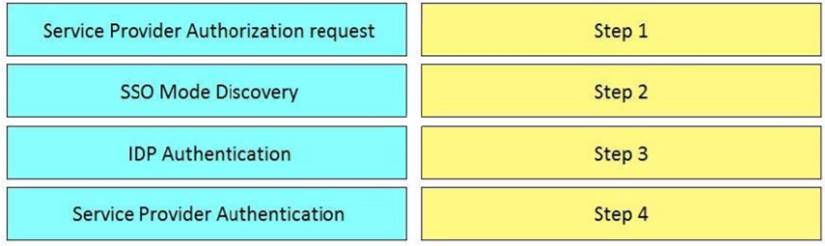

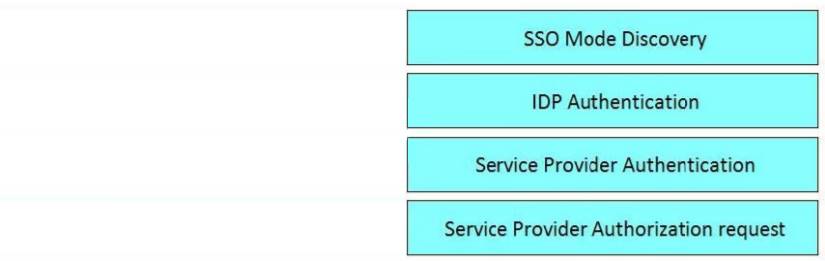

Drag and drop the events for an on-premises Jabber SAML SSO flow from the left into the correct order on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 16
Which CLI command is used to collect traces from the Cisco Presence engine for seven days?

• A. file build log cisco_presence_engine 7
• B. file build log cisco_presence 168
• C. file build log presence_engine 7
• D. file build log presence_engine 168

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/configAdminGuide/12_0_1/cup0_b_config-admin-guide-imp-1201/cup0_b_config-admin-guide-imp-1201_chapter_010101.html

NEW QUESTION 17

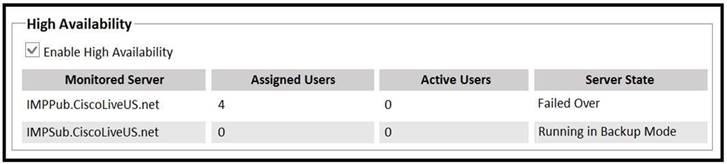

Refer to the exhibit.

A customer reports that after a network failure, all of the Cisco Jabber clients are not switched back to their home nodes. An engineer determines that the primary Cisco IM&P server is in Failed Over state. Which two actions should be performed to bring the system back to operational state and to prevent future occurrences? (Choose two.)

• A. Advise all users to re-login to their Jabber clients.
• B. Confirm that both IM&P servers are configured in the Presence Redundancy Group configuration pane.
• C. Perform a restart of the IM&P primary server to force fallback.
• D. Click the Fallback button in the Server Action pane.
• E. Set the Automatic Failover parameter in the Server Recovery Manager Service Parameters to the value True.

Answer: BD

NEW QUESTION 18
After integrating Cisco Unity Express with Cisco Unified Communications Manager Express, users report that the system does not respond to their digit presses. Which two configuration snippets resolve this issue? (Choose two.)

• A. dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-kpml codec g729r8
• B. dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-notify codec g711ulaw
• C. dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay rtp-nte codec g711ulaw
• D. dial-peer voice 6800 voip destination-pattern 5...session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-kpml codec g711ulaw
• E. dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-notify codec g729r8

Answer: BC

NEW QUESTION 19

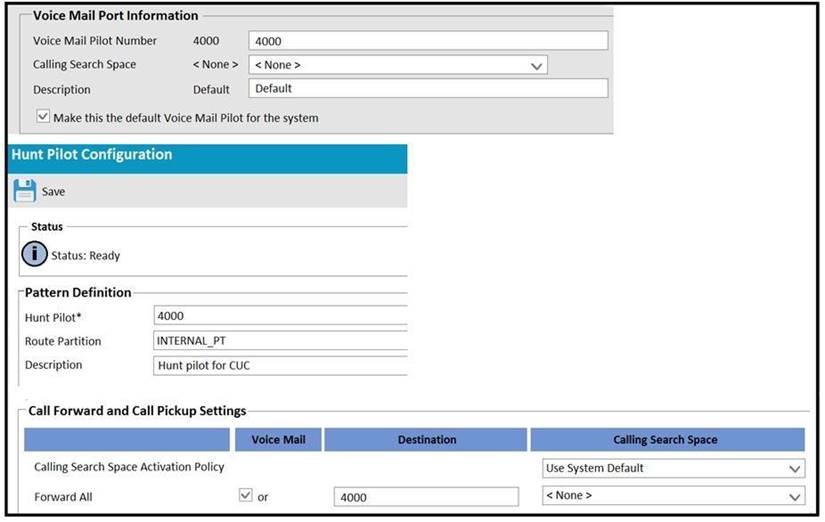

Refer to the exhibit.

Cisco Unity Connection and Cisco Unified Communications Manager are integrated by using SCCP. The Voice Mail Ports are registered. Users report that calls fail when forwarded to voicemail. Which is a cause of the issue?

• A. The call forward and call pickup settings do not have a CSS on Forward All.
• B. The Voice Mail Port partition on the CSS of the phone is missing.
• C. The Voice Mail Pilot is not configured with a CSS that contains the INTERNAL_PT.
• D. The CSS on the Voice Mail Pilot is missing partitions for user phones.

Answer: D

NEW QUESTION 20
What are two Cisco Jabber 12.6 on-premises deployment types that can be run on a Windows-enabled PC? (Choose two.)

• A. Contact Center Agent
• B. IM-only
• C. multicloud-based
• D. Full UC
• E. cloud-based

Answer: BD

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/12_6/cjab_b_on-prem-deployment-cisco-jabber_12-6.pdf

NEW QUESTION 21
Which statement about SIP federation between Cisco Unified Communications IM and Presence and Microsoft Skype for Business is true?

• A. Add the federated user as a contact in Jabber to view its presence status.
• B. The role of SIP Proxy service is to process the XMPP packet in from Jabber and convert it to SIP.
• C. TLS is optional.
• D. Use of directory URI as an IM addressing scheme is not supported.

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/interdomain_federation/12_5_1/cup0_b_interdomain-federation-1251/cup0_b_interdomain-federation-1251_chapter_01000.html

NEW QUESTION 22
Which Cisco IM and Presence service must be activated and running for IM Presence to successfully integrate with Cisco Unified Communications Manager?

• A. Cisco DHCP Monitor Service
• B. Cisco AXL Web Service
• C. Self-Provisioning IVR
• D. Cisco XCP Authentication Service

Answer: A
