Cisco 200-150 Dumps Questions 2021

NEW QUESTION 1
A network engineer wants to apply for new license key file. Which command should be used to obtain the switch serial number?

• A. MDS-A# show license serial-number
• B. MDS- A# show running-config | include serial-number
• C. MDS- A# show host-id
• D. MDS- A# show license host-id

Answer: D

NEW QUESTION 2
Which two network topologies are the most popular in switching? (Choose two.)

• A. Bus
• B. Token passing bus
• C. Star
• D. Extended star
• E. Ring

Answer: CD

Explanation: http://en.wikipedia.org/wiki/Network_topology

NEW QUESTION 3
Which Cisco WebEx Center has program end campaign management?

• A. Cisco WebEx Event Center
• B. Cisco WebEx Support Center
• C. Cisco WebEx Meeting Center
• D. Cisco WebEx TrainingCenter

Answer: A

NEW QUESTION 4
An administrator connected a new server to a Cisco MDS 9222i on Port FCL/20, but did not capture the world wide node name of the host bus adapter
Which command returns the needed information?

• A. show wwn status
• B. show Interface fc 1/20
• C. show flogi database
• D. show fcs database

Answer: C

NEW QUESTION 5
An engineer is configuring a new MDS switch. The switch is powered on, the customer connects to the console, and the initial setup script is started.
Which two items can be configured during this setup process?

• A. default port-channel mode
• B. default port VSAN membership
• C. default switch port interface state
• D. default zone mode
• E. default storage VDC

Answer: CD

NEW QUESTION 6
Given a subnet address of 10.6.128.0/22, how many IP addresses are usable for this subnet?

• A. 1024
• B. 2048
• C. 1022
• D. 2046
• E. 256

Answer: C

NEW QUESTION 7

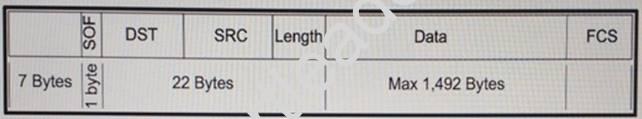

Refer to the exhibit. Which type of network communication is depicted?

• A. 802.3 frame
• B. TCP frame
• C. Ethernet packet
• D. UDP packet

Answer: A

NEW QUESTION 8
Which statement about VIP is true?

• A. There is a misconfiguration ; only one device running device running in server mode per domain is allowed
• B. 5K-2 is configured in server mode
• C. 7k-3 configuration in client mode
• D. Configuration a VLAN on 5K-1 would not be allowed, since 5k-1 is in client mode
• E. configuration a VLAN on 5k-2 would be allowed, but the VLAN would not be learned by the other devices in the domain DCICN

Answer: A

NEW QUESTION 9
Which Cisco WebEx products can support over 5000 attendees?

• A. Cisco WebEx Support Center
• B. Cisco WebEx Training Center
• C. Cisco WebEx Event Center
• D. Cisco WebEx Meeting Center

Answer: C

NEW QUESTION 10
Which two types of interface exist on Cisco Nexus Fabric Extender? (Choose two)

• A. network interface (NIF)
• B. uplink interface (UF)
• C. host interface (HIF)
• D. edge interface (EIF)
• E. trunk interface (TIF)

Answer: AC

Explanation: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/operations/interfaces/602_n1_1/N5K_

NEW QUESTION 11
Which description of a vFC interface is true?

• A. It can be associated to more than one VSAN
• B. It must be bound to an FCoE-enabled Ethernet or EtherChannel interface.
• C. It can be associated to a private VLAN
• D. It can be associated to an FCoE VLAN

Answer: B

Explanation: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/fcoe/513_n1_1/b_Cisco_n5k_fcoe_co

NEW QUESTION 12
Which statement describes the purpose of the MAC address forwarding table of a switch?

• A. The switch consults the forwarding table to determine the best route to a destination.
• B. The switch consults the forwarding table to determine the output port.
• C. The switch consults the forwarding table to determine if the packet is routable.
• D. The switch consults the forwarding table to determine if access control permits the packet.

Answer: B

NEW QUESTION 13
Which two descriptions of NPV are true? (Choose two.)

• A. It must be configured on all hosts that connect to the NPV switch.
• B. lt reduces the number of domain IDs in a fabric.
• C. It combines locally connected N Ports into a single uplink.
• D. It assigns multiple Fibre IDs to a single Port.
• E. It is deployed to a VM by using Cisco UCS Manager.

Answer: BD

NEW QUESTION 14
Ethernet 1/1 is assigned IP address 10.1.1.1 with subnet mask 255.255.255.0. Which configuration is used to configure EIGRP on a Cisco Nexus 7000 switch?

• A. feature eigrp!interface Ethernet1/1ip address 10.1.1.1 255.255.255.0no shutdown!router eigrp 1network 10.1.1.0 0.0.0.255
• B. feature eigrp!router eigrp 1autonomous-system 1!interface Ethernet1/1ip address 10.1.1.1/24ip router eigrp 1no shutdown
• C. router eigrp 1autonomous-system 1!interface Ethernet1/1ip address 10.1.1.1/24ip router eigrp 1no shutdown
• D. feature eigrp!interface Ethernet1/1ip address 10.1.1.1/24no shutdown!router eigrp 1network 10.1.1.0 0.0.0.255

Answer: B

NEW QUESTION 15

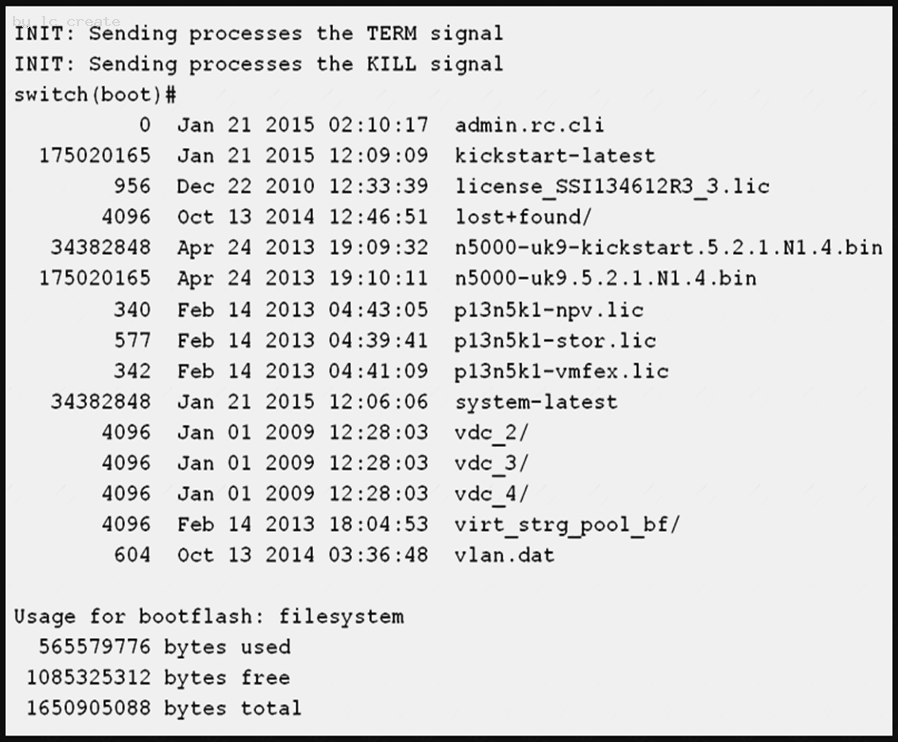

Refer to the exhibit. Which command allows the Cisco Nexus 5000 switch to continue to start up?

• A. switch(boot)# load n5000-uk9.5.2.1.N1.4.bin
• B. switch(boot)# configure terminalswitch(boot-config)# admin-password Cisco123
• C. switch(boot)# load n5000-uk9-kickstart.5.2.1.N1.4.bin
• D. switch(boot)# load system-latest

Answer: A

NEW QUESTION 16

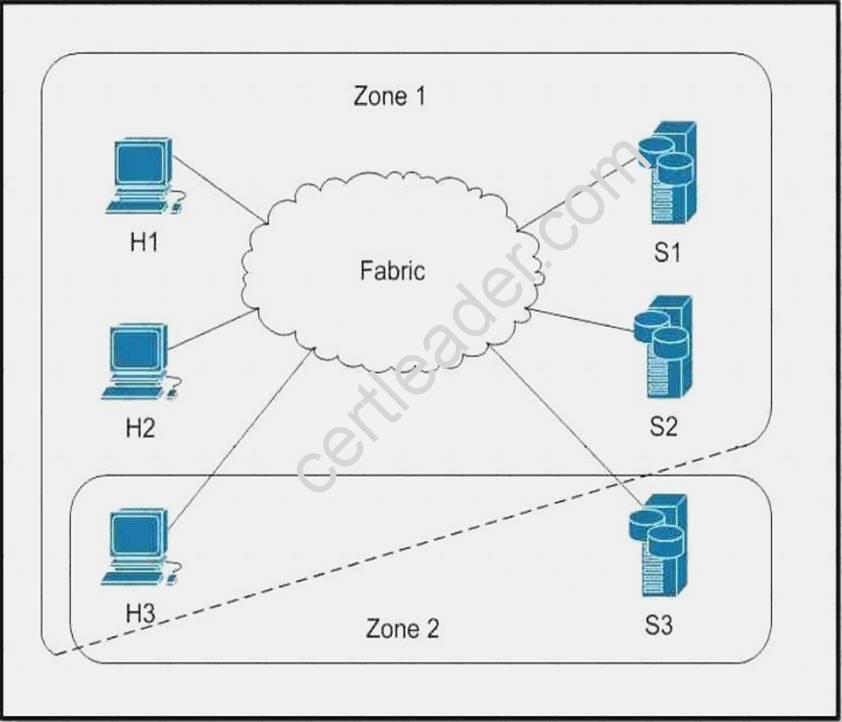

Refer to the exhibit.

Which two statements accurately describe the hosts, storage systems, and zones in the storage architecture'? (Choose two.)

• A. H3 resides in only one zone
• B. H3 cannot access storage systems S1 and S2
• C. Zone 2 restricts data on S3 so that only H3 can access that data
• D. Zone 1 and Zone 2 cannot belong to the same zone set
• E. Zone 1 provides access from all three hosts to storage systems S1 and S2

Answer: CE

NEW QUESTION 17
What is themaximumnumber of Expressways that can be clustered?

• A. 9
• B. 6
• C. 5
• D. 2

Answer: B
